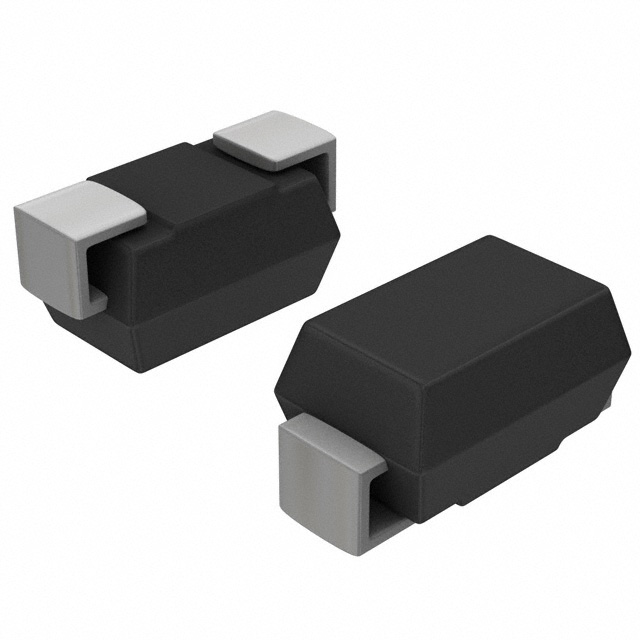

SMAJ10A
400W Surface Mount Transient Voltage Supressors | Littelfuse SMAJ10A
Availability: Out of Stock
Package Type: DO-214
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMAJ10A by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

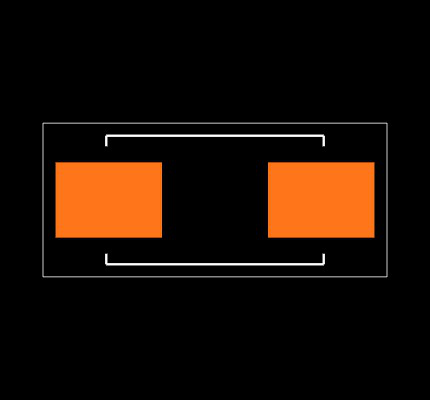

Footprint
No web preview
This Footprint is Available for

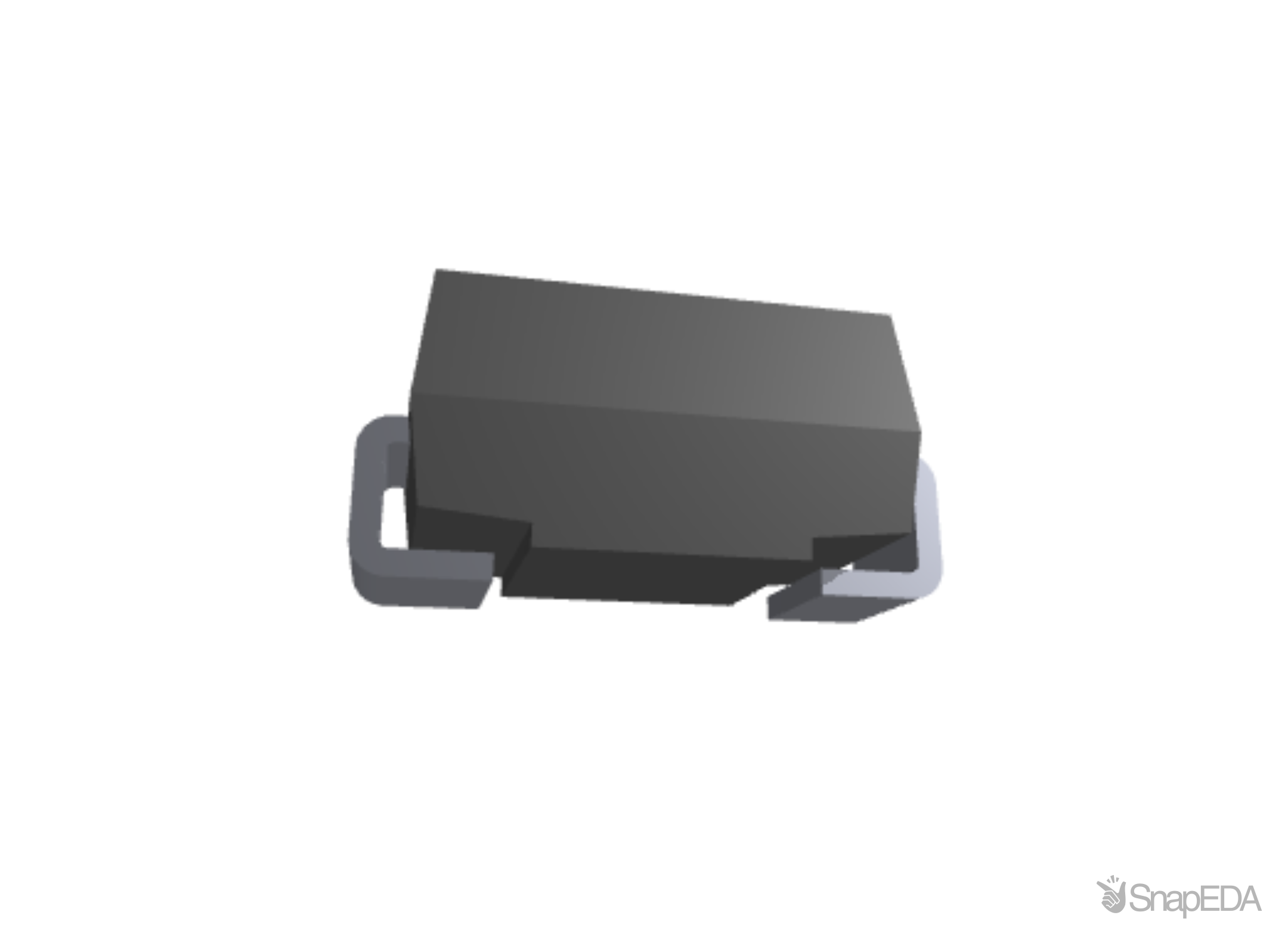

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMAJ10A
| Part Name | SMAJ10A |
| Manufacturer | Littelfuse |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 23.5 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 10 (V) |
| Dimensions | 4.6 x 2.79 x 2.08 (mm) |
| Minimum Breakdown Voltage (V) | 12.3 (V) |
| Esd Protection | Yes |
| Surge Current Rating (A) | 60 (A) |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current (A) | 5 (µA) |
| Direction Type | Uni-Directional |
| Height | 2.08 (mm) |
| Width | 2.79 (mm) |
| Length | 4.6 (mm) |
| Package Type | DO-214AC |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Mounting Type | Surface Mount |
| Maximum Clamping Voltage (V) | 17 (V) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400 (W) |
| Test Current (A) | 1 (mA) |
No issues have been reported for the SMAJ10A
