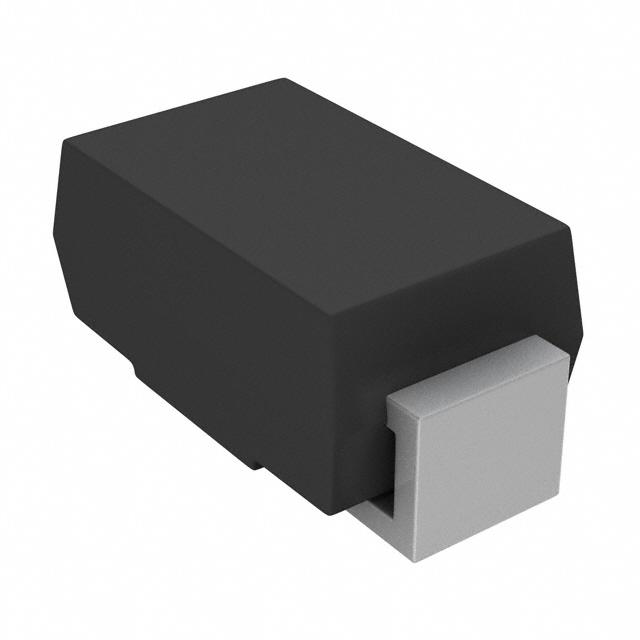

SMAJ24CA-E3/61
38.9V Clamp 10.3A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Availability: In Stock
Package Type: DO-214
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMAJ24CA-E3/61 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

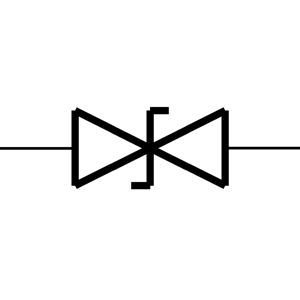

Symbol
No web preview
This Symbol is Available for

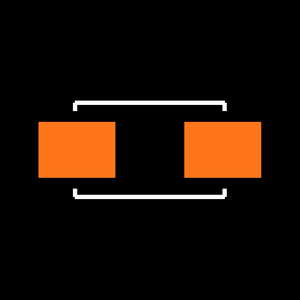

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMAJ24CA-E3/61
| Part Name | SMAJ24CA-E3/61 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 24 (V) |
| Maximum Peak Pulse Current (A) | 10.3 (A) |
| Dimensions | 4.5 x 2.79 x 2.09 (mm) |
| Minimum Breakdown Voltage (V) | 26.7 (V) |
| Direction Type | Bi-Directional |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current (A) | 1 (µA) |
| Maximum Clamping Voltage (V) | 38.9 (V) |
| Width | 2.79 (mm) |
| Length | 4.5 (mm) |
| Package Type | DO-214AC (SMA) |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Height | 2.09 (mm) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the SMAJ24CA-E3/61 by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
16,260
|
|
Visit Site | |
|
★ Featured
|
146,340
|
6,000 x $0.06
|
Visit Site | |
| Arrow Europe |
100,800
|
1,800 x $0.06
|
Visit Site | |
| Avnet America |
57,600
|
|
Visit Site | |
| Conrad |
1,779
|
1 x $0.06
|
Visit Site | |
| Farnell UK |
569
|
|
Visit Site | |
| Newark |
4,234
|
1 x $0.04
|
Visit Site | |
| RS Americas |
3,422
|
|
Visit Site | |
| Rutronik |
18,000
|
1,800 x $0.05
|
Visit Site | |
| TME |
1,535
|
|
Visit Site | |
| TTI Americas |
68,400
|
1,800 x $0.05
|
Visit Site | |
| Verical |
1,535
|
667 x $0.11
|
Visit Site | |
| element14 Singapore |
569
|
|
Visit Site |
No issues have been reported for the SMAJ24CA-E3/61
