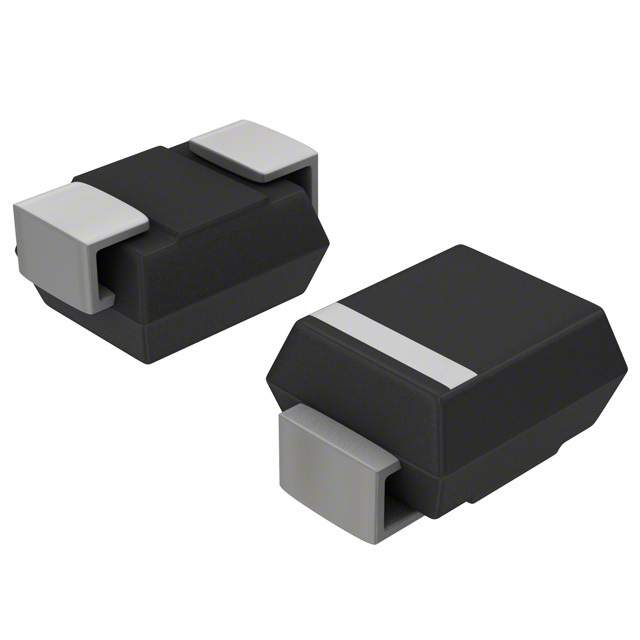

SMAJ30A-TR
64.3V Clamp 36A (8/20µs) Ipp Tvs Diode Surface Mount DO-214AC (SMA)
Availability: In Stock
Package Type: DO-214
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMAJ30A-TR by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMAJ30A-TR
| Part Name | SMAJ30A-TR |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 30 (V) |
| Maximum Peak Pulse Current (A) | 36 (A) |
| Dimensions | 4.6 x 2.95 x 2.03 (mm) |
| Minimum Breakdown Voltage (V) | 33.3 (V) |
| Direction Type | Uni-Directional |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current (A) | 200 (nA) |
| Esd Protection | Yes |
| Maximum Clamping Voltage (V) | 64.3 (V) |
| Width | 2.95 (mm) |
| Length | 4.6 (mm) |
| Package Type | DO-214AC (SMA) |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Height | 2.03 (mm) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the SMAJ30A-TR by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,926
|
|
Visit Site | |
|
★ Featured
|
235,305
|
3,205 x $0.09
|
Visit Site | |
| Arrow Europe |
215,000
|
|
Visit Site | |
| Verical |
215,000
|
|
Visit Site |
No issues have been reported for the SMAJ30A-TR
