SMBJ14A

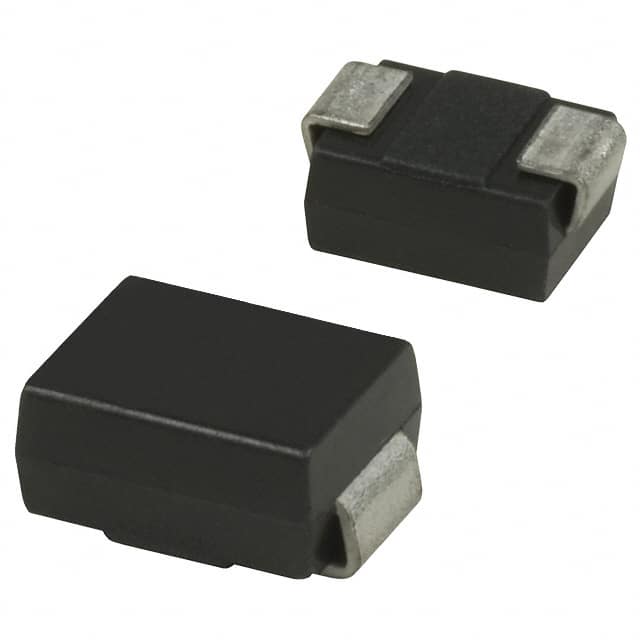

600W Surface Mount TVS Diode | Littelfuse SMBJ14A
Availability: Out of Stock
Package Type: DO-214AA
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMBJ14A by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

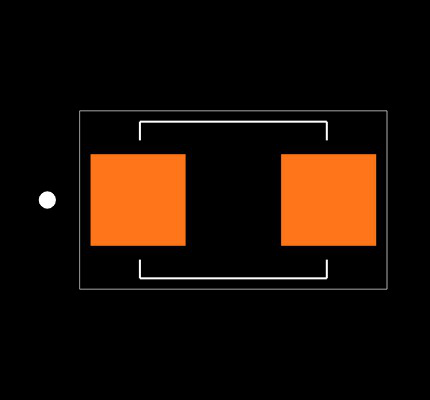

BuildFootprint
No web preview
This Footprint is Available for

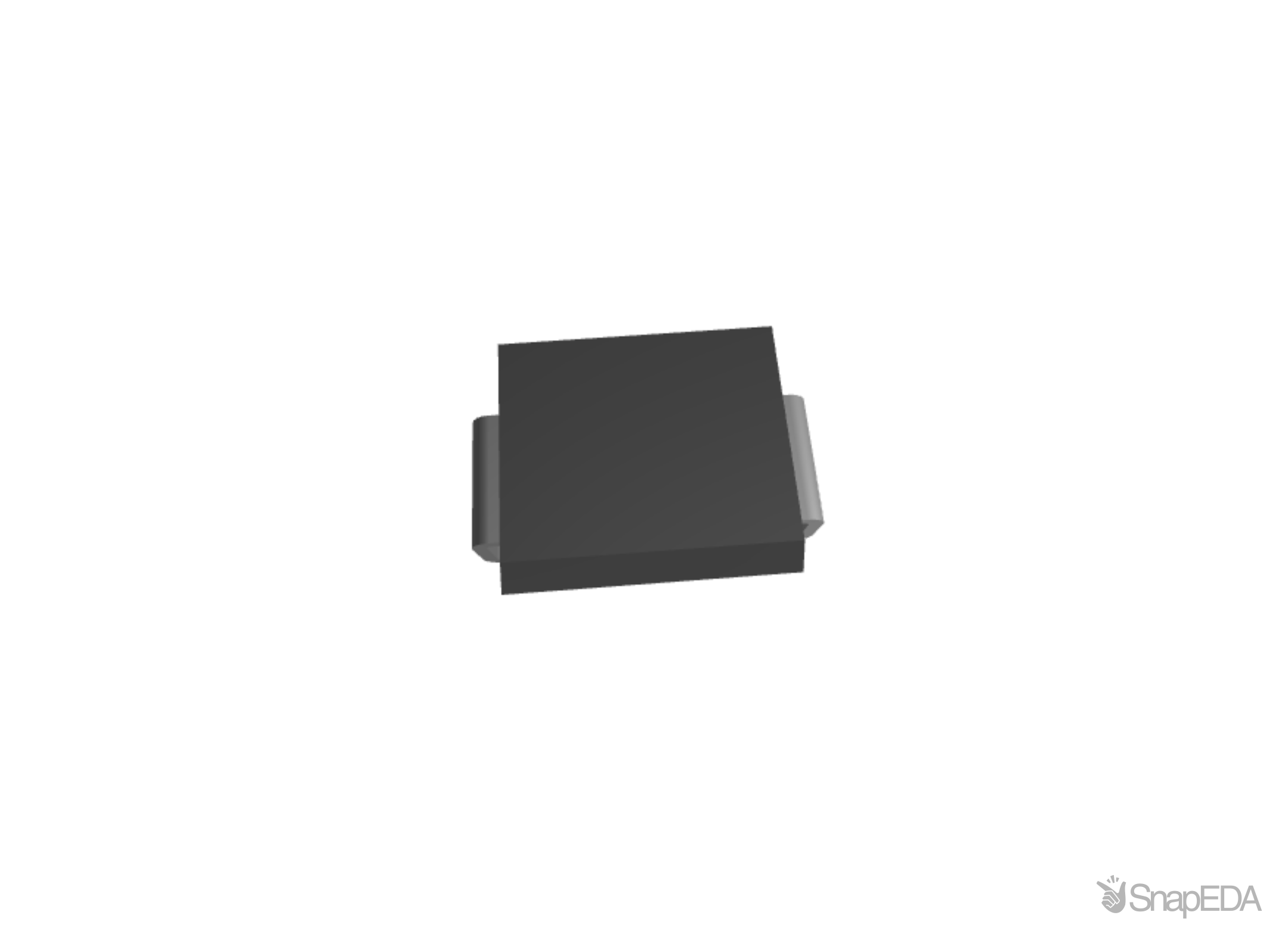

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMBJ14A
| Part Name | SMBJ14A |
| Manufacturer | Littelfuse |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand-Off Voltage (V) | 14 (V) |
| Dimensions | 4.75 x 3.94 x 2.41 (mm) |
| Esd Protection | Yes |
| Width | 3.94 (mm) |
| Maximum Clamping Voltage (V) | 23.2 (V) |
| Diode Configuration | Single |
| Test Current (A) | 1 (mA) |
| Maximum Peak Pulse Current (A) | 25.9 (A) |
| Minimum Breakdown Voltage (V) | 15.6 (V) |
| Surge Current Rating (A) | 100 (A) |
| Maximum Reverse Leakage Current (A) | 1 (µA) |
| Direction Type | Uni-Directional |
| Package Type | DO-214AA (SMB) |
| Number Of Elements Per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 4.75 (mm) |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600 (W) |
| Mounting Type | Surface Mount |
| Esd Voltage (V) | 30 (kV) |
| Height | 2.41 (mm) |
| Minimum Operating Temperature | -65 °C |
