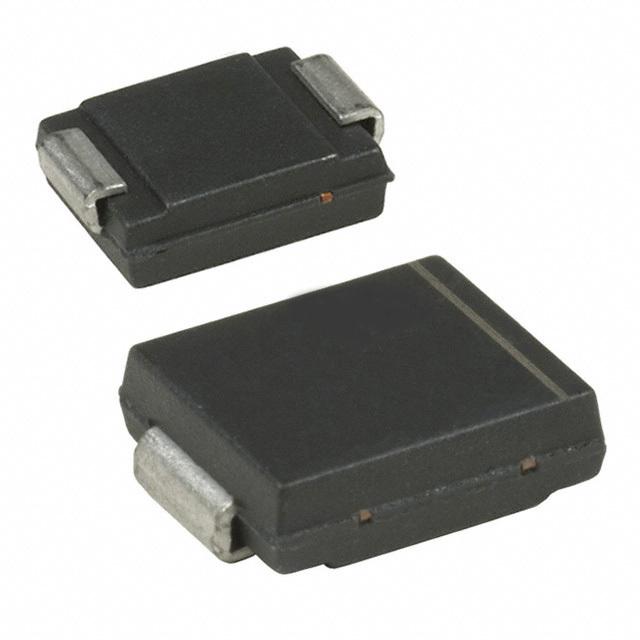

SMCJ15CA-TR
32.5V Clamp 308A (8/20µs) Ipp Tvs Diode Surface Mount SMC
Availability: In Stock
Package Type: DO-214
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMCJ15CA-TR by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMCJ15CA-TR
| Part Name | SMCJ15CA-TR |
| Manufacturer | STMicroelectronics |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Reverse Stand Off Voltage (V) | 15 (V) |
| Maximum Peak Pulse Current (A) | 308 (A) |
| Dimensions | 7.15 x 6.25 x 2.45 (mm) |
| Minimum Breakdown Voltage (V) | 16.7 (V) |
| Direction Type | Bi-Directional |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current (A) | 1 (µA) |
| Maximum Clamping Voltage (V) | 32.5 (V) |
| Width | 6.25 (mm) |
| Length | 7.15 (mm) |
| Package Type | DO-214AB (SMC) |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Height | 2.45 (mm) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the SMCJ15CA-TR by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,528
|
|
Visit Site | |
|
★ Featured
|
1,900
|
1,580 x $0.22
|
Visit Site | |
| Arrow Europe |
15,000
|
|
Visit Site | |
| Verical |
15,000
|
|
Visit Site |
No issues have been reported for the SMCJ15CA-TR
