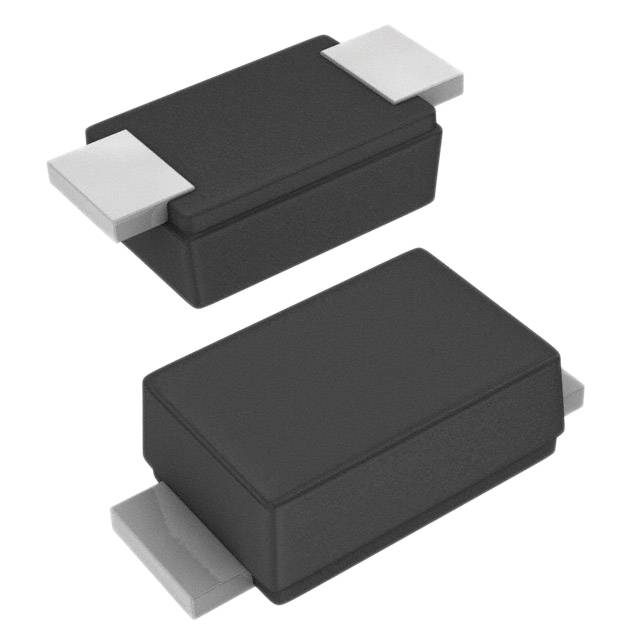

SMF6.0A

Name: SMF6.0A
Brand: Littelfuse

10.3V Clamp 19.4A Ipp Tvs Diode Surface Mount SOD-123F

Availability: Out of Stock

Package Type: SOD-123

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the SMF6.0A by Littelfuse and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

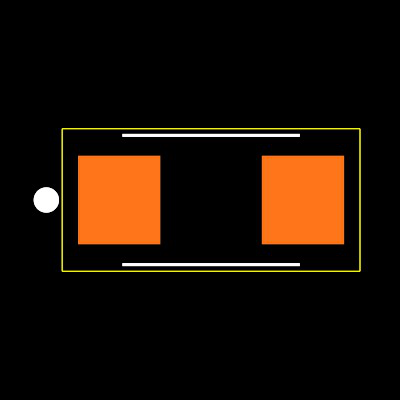

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

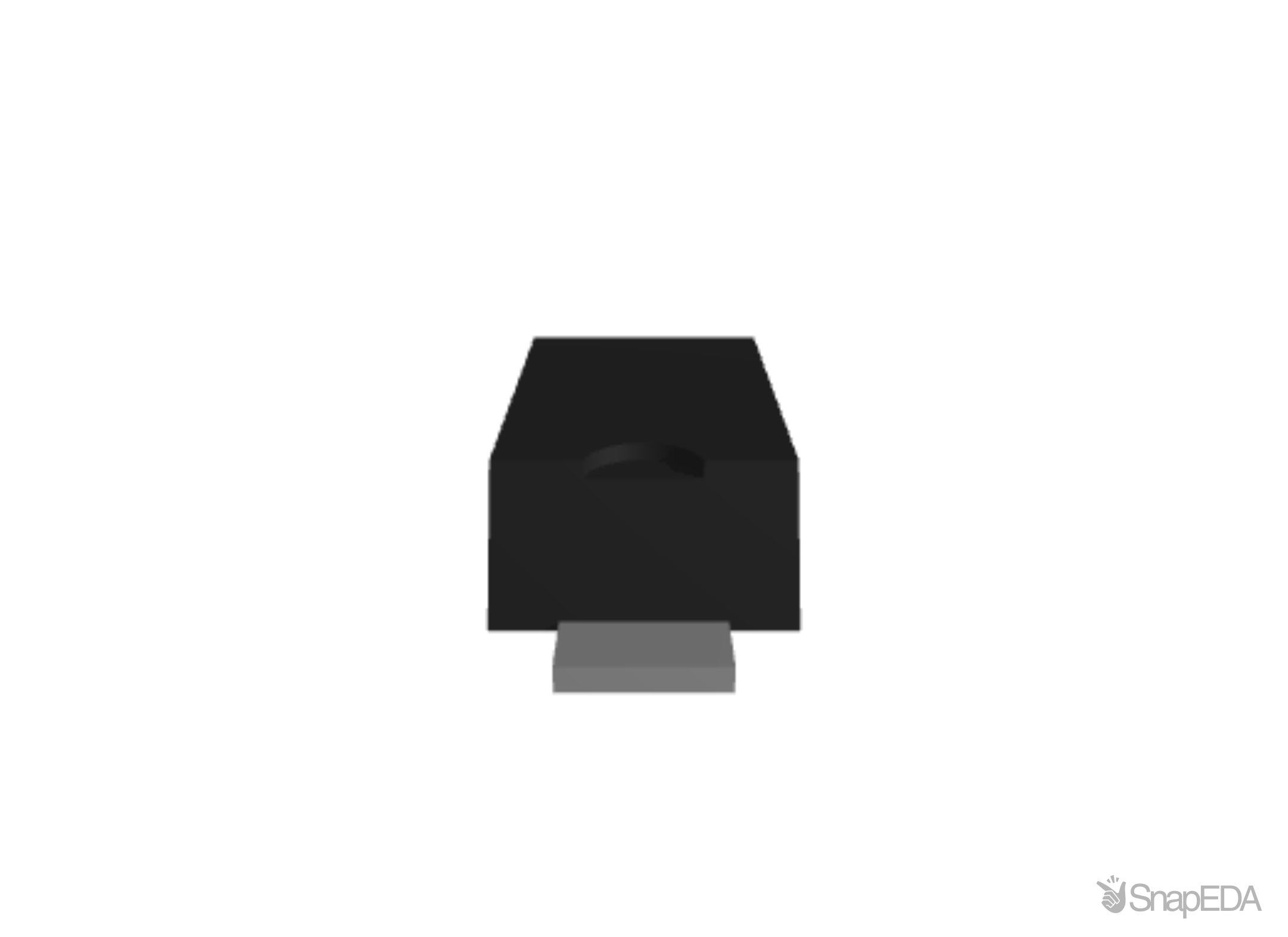

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the SMF6.0A

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the SMF6.0A

Part Name	SMF6.0A
Manufacturer	Littelfuse Inc.
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Maximum Reverse Stand Off Voltage (V)	6 (V)
Maximum Peak Pulse Current (A)	19.4 (A)
Dimensions	2.9 x 2 x 1 (mm)
Minimum Breakdown Voltage (V)	6.67 (V)
Direction Type	Uni-Directional
Esd Voltage (V)	30 (kV)
Maximum Reverse Leakage Current (A)	400 (µA)
Esd Protection	Yes
Length	2.9 (mm)
Maximum Clamping Voltage (V)	10.3 (V)
Width	2 (mm)
Diode Configuration	Single
Package Type	SOD-123FL
Number Of Elements Per Chip	1
Minimum Operating Temperature	-65 °C
Mounting Type	Surface Mount
Height	1 (mm)
Maximum Operating Temperature	+150 °C
Pin Count	2
Peak Pulse Power Dissipation	200 (W)
Test Current (A)	10 (mA)

We could not find inventory or pricing across major distributors for the SMF6.0A by Littelfuse.
