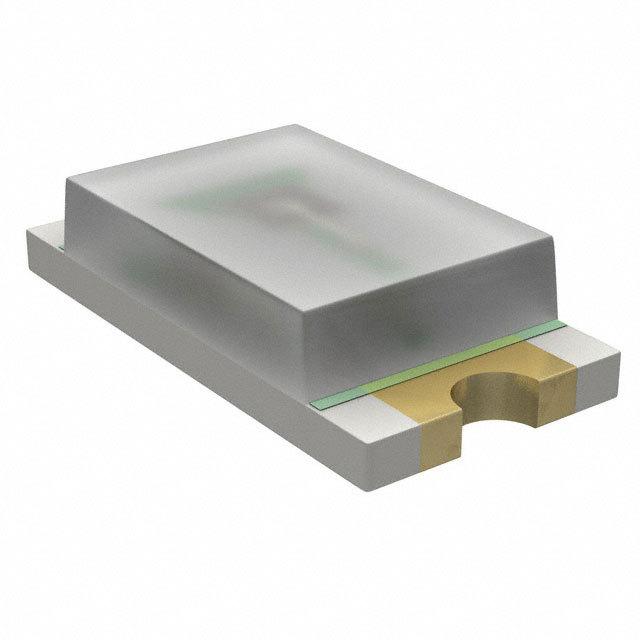

SML-D12U1WT86
Red 620nm LED Indication - Discrete 2.2V 0603 (1608 Metric)
Availability: In Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SML-D12U1WT86 by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SML-D12U1WT86
| Part Name | SML-D12U1WT86 |
| Manufacturer | Rohm |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dominant Wavelength | 625 nm |
| Dimensions | 1.6 x 0.8 x 0.55 (mm) |
| Mounting Type | Surface Mount |
| Forward Current (A) | 20 (mA) |
| Lens Finish | Milky White |
| Forward Voltage (V) | 2.2 V |
| Led Colour S | Red |
| Luminous Intensity | 63 mcd |
| Package Type | 1608 (0603) |
| Number Of Leds | 1 |
| Lens Shape | Rectangular |
| Number Of Pins | 2 |
Inventory for the SML-D12U1WT86 by Rohm from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Chip One Stop |
12,365
|
|
Visit Site | |
| CoreStaff |
10,017
|
|
Visit Site | |
| Farnell UK |
3,190
|
|
Visit Site | |
| Newark |
3,160
|
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| TME |
2,938
|
|
Visit Site | |
| TTI Americas |
96,000
|
|
Visit Site | |
| element14 Singapore |
3,410
|
100 x $0.06
|
Visit Site |
No issues have been reported for the SML-D12U1WT86
