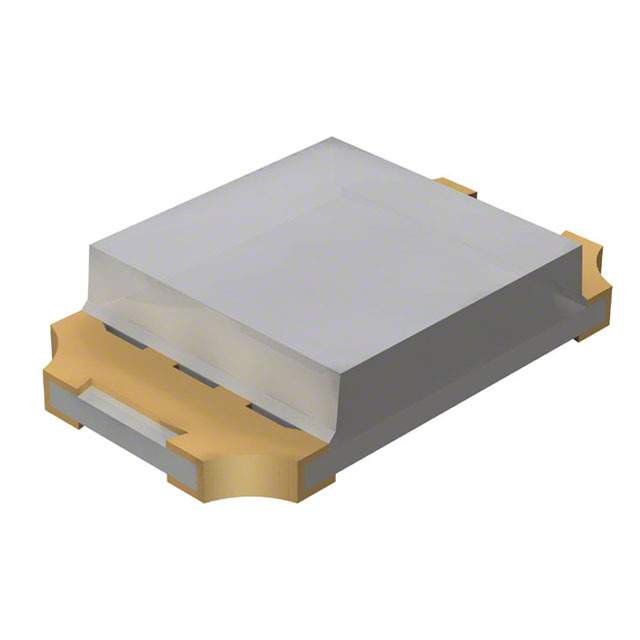

SML-P11VTT86R
Red 626nm LED Indication - Discrete 1.8V 0402 (1006 Metric)
Availability: Out of Stock
Package Type: 0402
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SML-P11VTT86R by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SML-P11VTT86R
| Part Name | SML-P11VTT86R |
| Manufacturer | Rohm |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Lens Colour | Clear |
| Dominant Wavelength | 632 nm |
| Dimensions | 1 x 0.6 x 0.2 (mm) |
| Mounting Type | Surface Mount |
| Forward Current (A) | 1 (mA) |
| Lens Finish | Clear |
| Forward Voltage (V) | 1.8 V |
| Led Colour S | Red |
| Luminous Intensity | 4 mcd |
| Package Type | SML-P11 |
| Number Of Leds | 1 |
| Lens Shape | Square |
| Number Of Pins | 2 |
No issues have been reported for the SML-P11VTT86R
