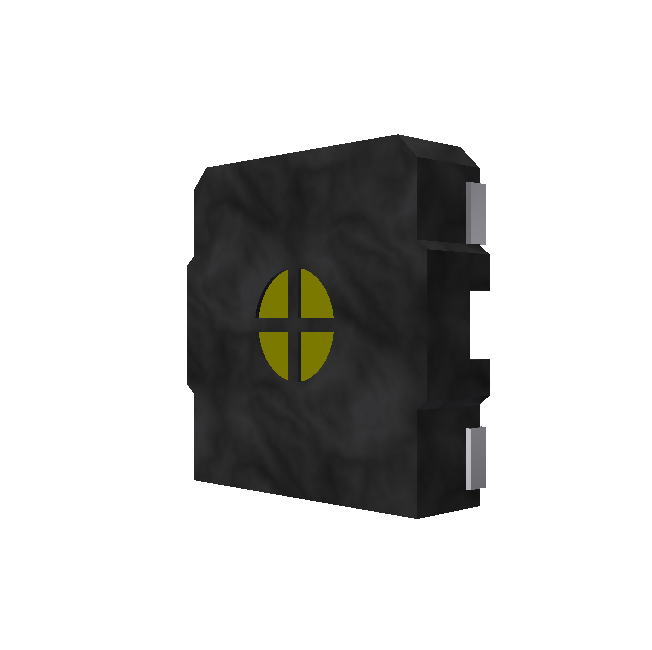

SMS-1504MS-2-R
15X15MM SPEAKER 800HZ 87DB 4OHM 0.5W KAPTON SURFACE MOUNT
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMS-1504MS-2-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMS-1504MS-2-R
| Part Name | SMS-1504MS-2-R |
| Manufacturer | PUI Audio |
| SPL at 10 cm | 87.0 |
| Freq min in Khz | 0.64 |
| Impedance in ohms | 4.0 |
| Device Type | Speaker |
| Rated Input Power | 0.5 |
| Magnet Material | SmCo |
| Lead Time | 145 |
| Resonant Frequency Khz | 0.8 |
| MULT | 600 |
| Status | Active |
| SPQ | 600 |
| Weight in grams | 1.5 |
| Tolerance percentage | 15.0 |
| REACH | Yes |
| SPU | REEL |
| RoHS | Yes |
| Additional Features | surface mount |
| Freq max in Khz | 20.0 |
| Country Code | CN |
| Diaphragm Material | Kapton |
| Tolerance - dB | 3 |
| Operating Temp. | -30 to 85 |
| Temp. Grade | High Temp |
| HTS Code | 8518.21.0000 |
| MOQ | 600 |
| Input Power Max | 0.8 |
| Dimmensions in mm. | 15 x 15 x 4 |
| Product Link | https://www.puiaudio.com/products/sms-1504ms-2-r |
| Shape | Square |
