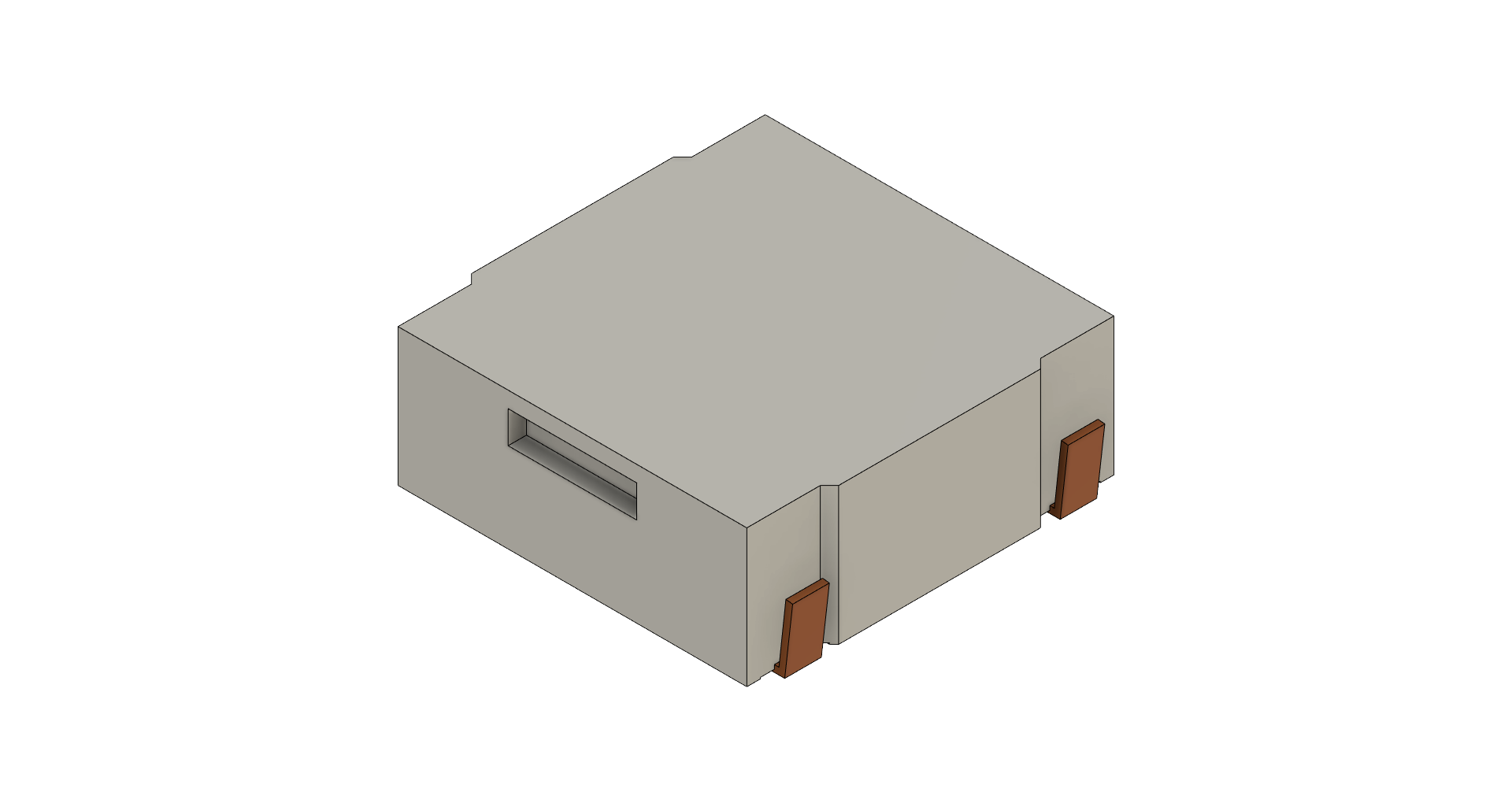

SMT-0827-S-10-R
SnapVerified
8X8MM TRANSDUCER 2731HZ 82DB
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMT-0827-S-10-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMT-0827-S-10-R
| Part Name | SMT-0827-S-10-R |
| Manufacturer | PUI Audio |
| Tolerance Khz | 0.5 |
| Rated Current Max (A) | 45.0 |
| Product Link | https://puiaudio.com/product/transducers/smt-0827-s-10-r |
| Country Code | PH |
| Device Type | Electro-Mechanical |
| Operating Temp. | -30 to 70 |
| Lead Time | 60 |
| Resonant Frequency Khz | 2.731 |
| MULT | 1000 |
| Coil Resistance | 52.0 |
| Status | Active |
| HTS Code | 8531.80.9041 |
| Operating Voltage Min (V) | 2.4 |
| Minimum SPL at 10 cm | 82 |
| Operating Voltage Max (V) | 4.5 |
| SPQ | 1000 |
| Weight in grams | 0.4 |
| REACH | Yes |
| SPU | Reel |
| Shape | Square |
| Dimmensions in mm. | 8 x 8 x 3 |
| RoHS | Yes |
| Rated Voltage (V) | 3.6 |
| Additional Features | surface mount, side firing |
| MOQ | 1000 |
