SMT-0830-T-R
9X9MM TRANSDUCER 2730HZ 88DB 6.5OHM 1.5V 70MA MAGNETIC SMT TOP FIRING
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMT-0830-T-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

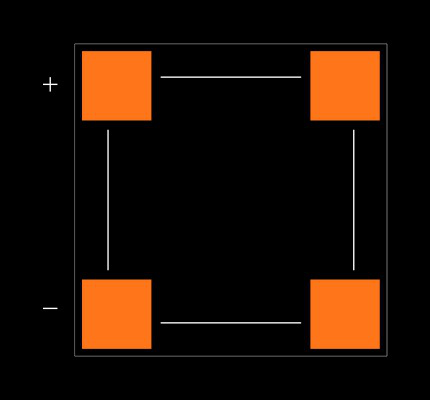

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMT-0830-T-R
| Part Name | SMT-0830-T-R |
| Manufacturer | PUI Audio |
| Rated Voltage (V) | 1.5 |
| Device Type | Electro-Mechanical |
| Lead Time | 60 |
| Resonant Frequency Khz | 2.73 |
| MULT | 1000 |
| Coil Resistance | 6.5 |
| Status | Active |
| Minimum SPL at 10 cm | 88 |
| SPQ | 1000 |
| Weight in grams | 2.0 |
| REACH | Yes |
| SPU | REEL |
| Tolerance - Ohms | 1 |
| Tolerance Khz | 0.5 |
| Additional Features | surface mount, top firing |
| Rated Current Max (A) | 70.0 |
| Terminal Material | Sn Plated Copper |
| Country Code | CN |
| Operating Temp. | -20 to 70 |
| RoHS | Yes |
| HTS Code | 8531.80.9041 |
| Operating Voltage Min (V) | 1.0 |
| Operating Voltage Max (V) | 3.0 |
| MOQ | 1000 |
| Shape | Square |
| Dimmensions in mm. | 8.5 x 8.5 x 3 |
| Product Link | https://puiaudio.com/product/transducers/smt-0830-t-r |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the SMT-0830-T-R by PUI Audio from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
|
1,000 x $2.06
|
Visit Site |
No issues have been reported for the SMT-0830-T-R
