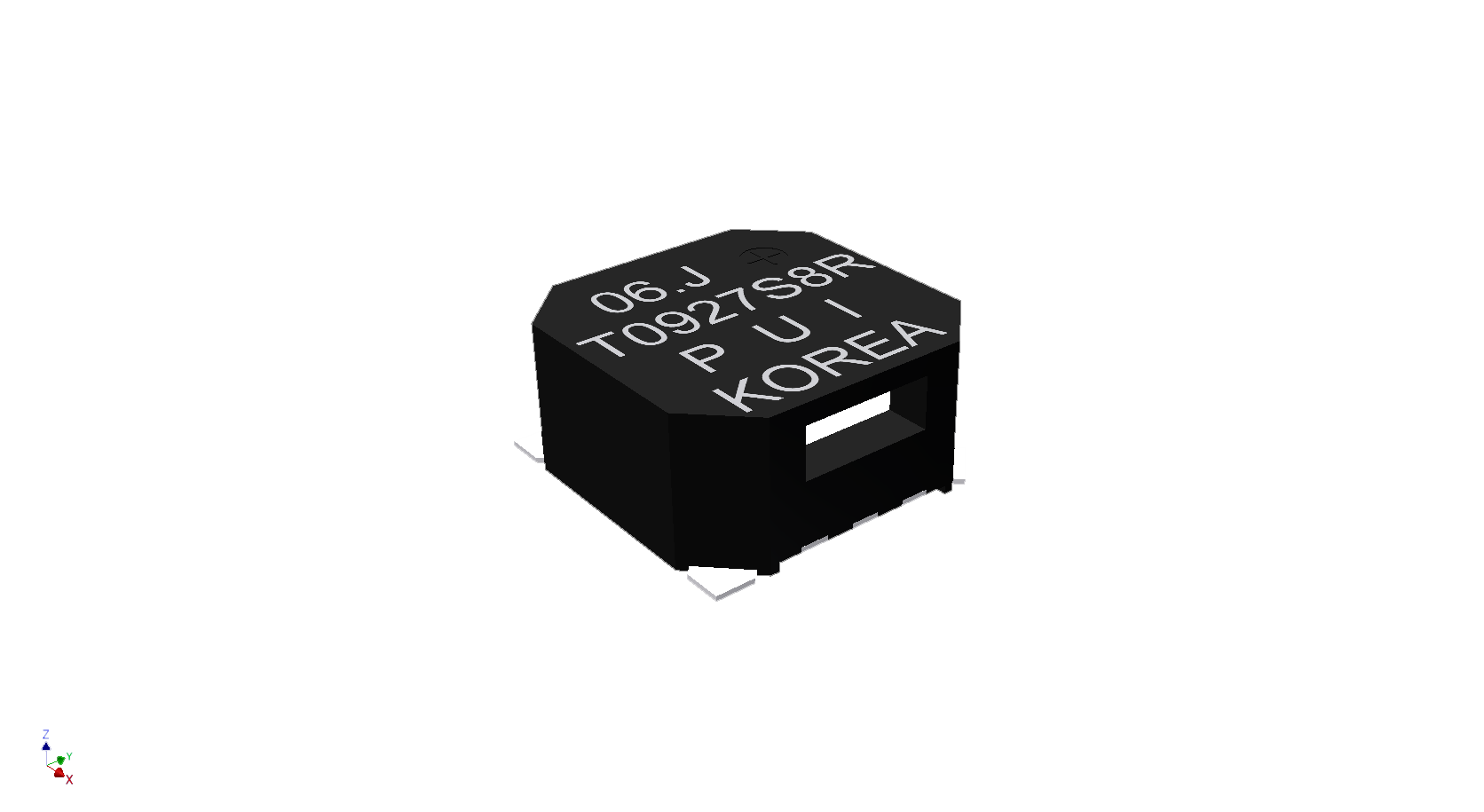

SMT-0927-S-8-R
SnapVerified
TRANSDUCER 3.6V0-P 87DB 2700HZ
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMT-0927-S-8-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

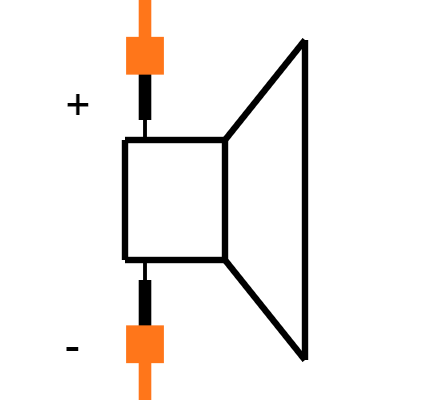

Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

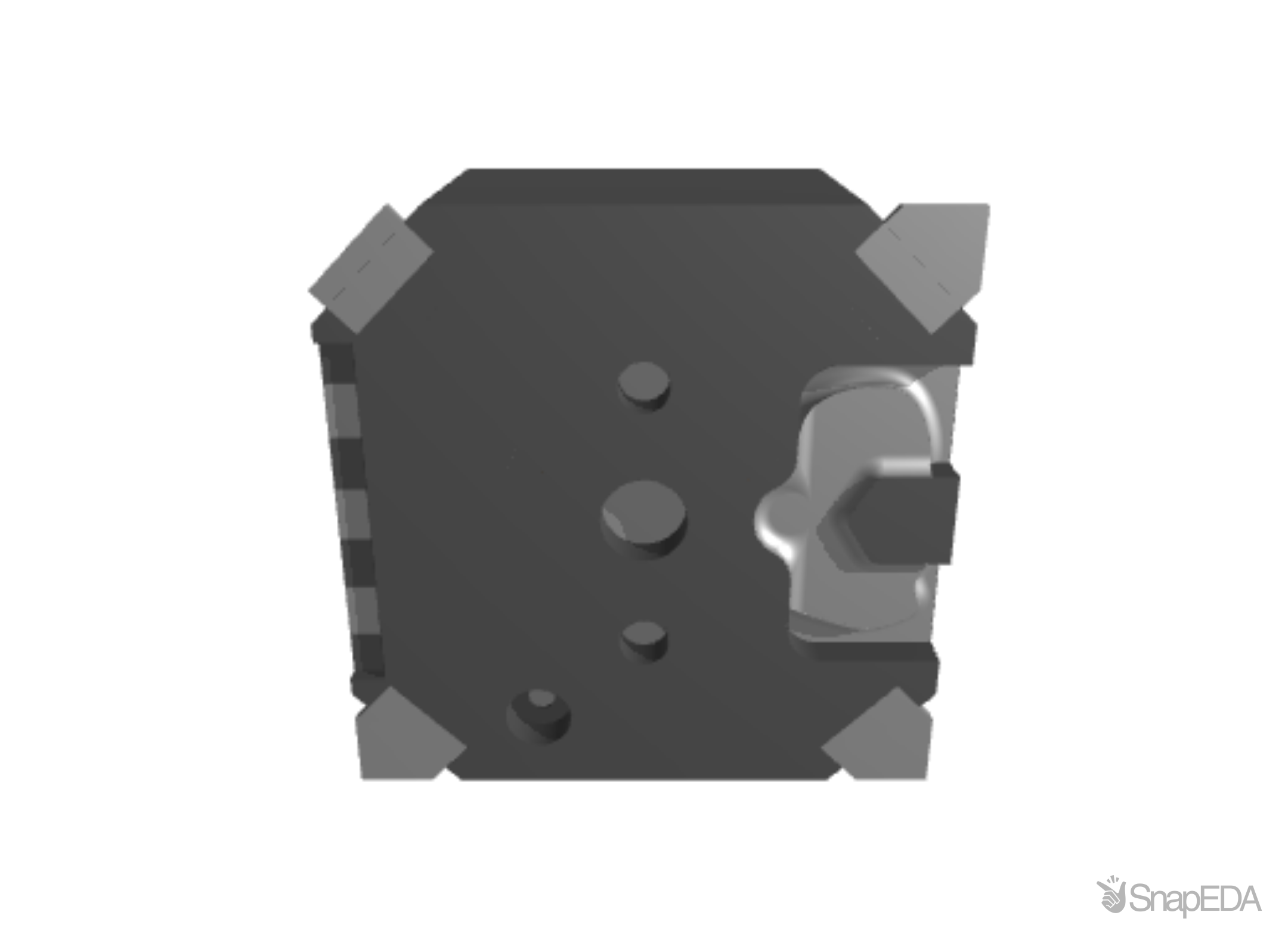

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the SMT-0927-S-8-R
Part Name | SMT-0927-S-8-R |
Manufacturer | PUI Audio |
Tolerance Khz | 0.5 |
Device Type | Electro-Mechanical |
Lead Time | 130 |
Resonant Frequency Khz | 2.7 |
MULT | 1000 |
Coil Resistance | 15.0 |
Status | Active |
Minimum SPL at 10 cm | 87 |
SPQ | 1000 |
Weight in grams | 0.8 |
REACH | Yes |
SPU | REEL |
Tolerance - Ohms | 3 |
Rated Voltage (V) | 3.6 |
Additional Features | surface mount, side firing |
Terminal Material | Sn Plated Brass |
Rated Current Max (A) | 100.0 |
Country Code | CN |
Operating Temp. | -30 to 85 |
RoHS | Yes |
HTS Code | 8531.80.9041 |
Operating Voltage Min (V) | 2.5 |
Operating Voltage Max (V) | 4.5 |
MOQ | 1000 |
Shape | Square |
Dimmensions in mm. | 8.5 x 8.5 x 4 |
Product Link | https://www.puiaudio.com/products/smt-0927-s-8-r |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
Inventory for the SMT-0927-S-8-R by PUI Audio from major distributors.
Supplier | Quantity | Price | Purchase | |
---|---|---|---|---|
★ Featured
|
|
1,000 x $1.52
|
Visit Site | |
★ Featured
|
316
|
|
Visit Site |
No issues have been reported for the SMT-0927-S-8-R
If you experienced any issues with the symbol or footprint, please report it.
