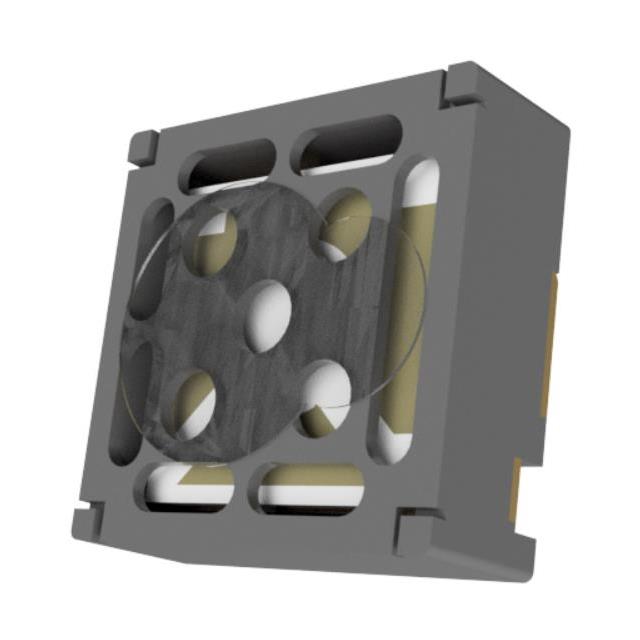

SMUTR-0540K-T
SnapVerified
5X5MM ULTRASONIC 40KHZ 65DB
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMUTR-0540K-T by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

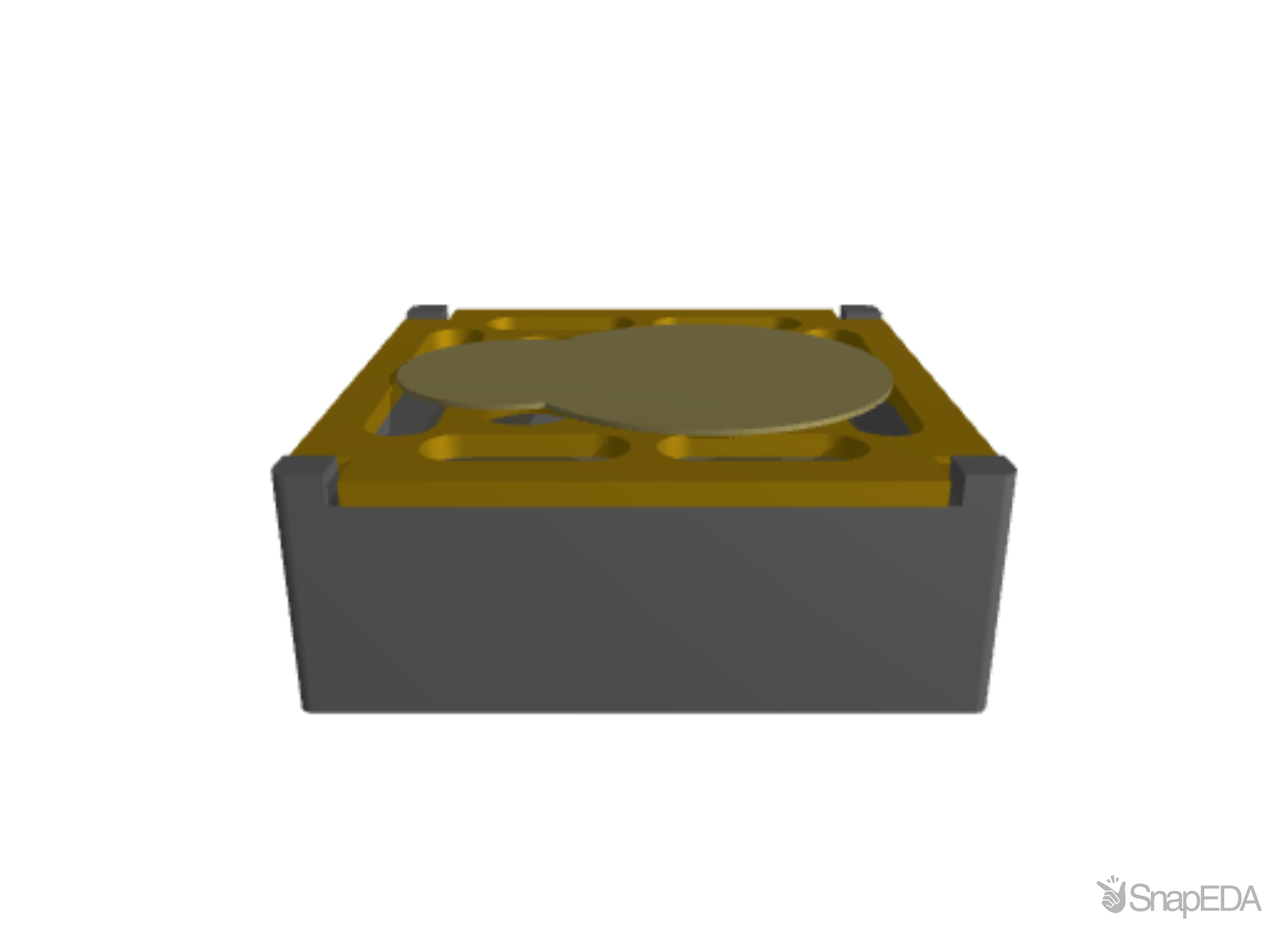

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMUTR-0540K-T
| Part Name | SMUTR-0540K-T |
| Manufacturer | PUI Audio |
| Directivity | 88 |
| Tolerance at degrees | 5 |
| Device Type | Transmiter/Receiver |
| Lead Time | 115 |
| MULT | 1000 |
| Status | Active |
| SPQ | 1000 |
| Tolerance percentage | 20.0 |
| REACH | No |
| SPU | REEL |
| Resonant Frequency - Mhz | 0.04 |
| Additional Features | solder pad |
| Exemption | 7C |
| Tolerance - Mhz | 0.001 |
| Country Code | CN |
| Operating Temp. | -20 to 70 |
| Max Input Voltage (V) | 10.0 |
| RoHS | Yes |
| HTS Code | 8531.80.9041 |
| Capacitance | [4.0, 500.0] |
| MOQ | 1000 |
| Dimmensions in mm. | 5 x 5 x 2.1 |
| Product Link | https://puiaudio.com/product/ultrasonics/smutr-0540k-t |
| Sensitivity in dB | -65.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
