SMW551RJT
SMW5 51R 5% Resistance Value: 51 Ω Element Type: Wire Wound Resistor Type: Power Resistor Passive Component Tolerance: 5 % Number of Terminations: 2 Smd Power Resistor: 7 Watt & 0.10-500 Ohm | 51 Ω Wire Wound Power Resistor 5 % | Part Number: SMW551RJT | Internal Number: 6-1879233-6 | TE Connectivity
Availability: In Stock
Package Type: 5329
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMW551RJT by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

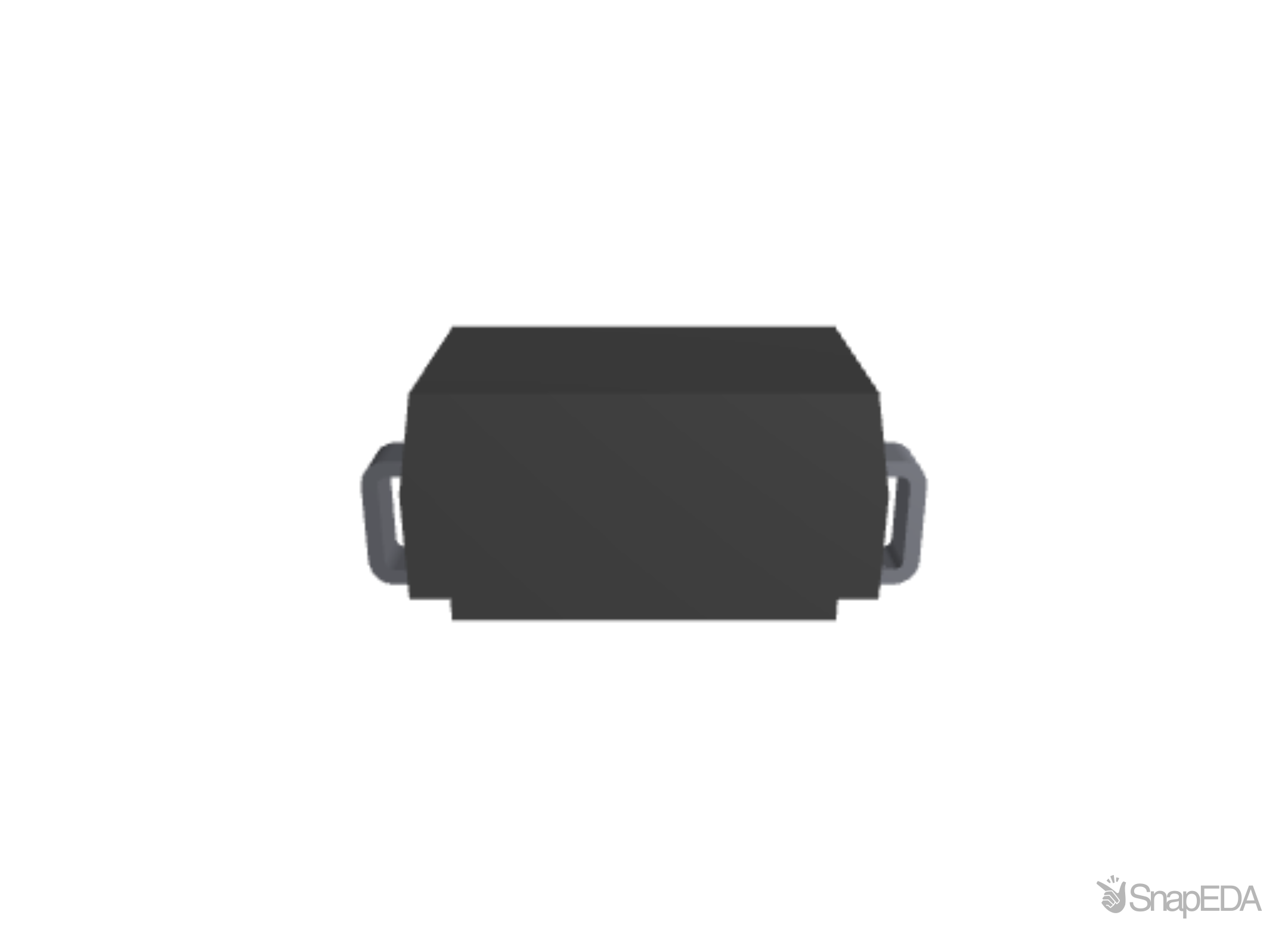

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMW551RJT
| Part Name | SMW551RJT |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 13.5 x 7.3 x 6.8 |
| Voltage Rating (V) | 500 |
| Packaging Method | Taped & Reeled |
| Resistor Type | Power Resistor |
| Element Type | Wirewound |
| TE Internal Number | 6-1879233-6 |
| Temperature Coefficient | ±200 |
| Resistance | 51 |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | 5 |
| Product Type | Fixed Resistor |
| Tolerance | 5% |
| Resistance Range | Up to 1kΩ |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | 5329 (13573M) |
| Series | SM |
| Resistance | 51 (Ω) |
| Temperature Coefficient | ±200 (ppm/°C) |
| Technology | Wire Wound |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 5 (W) |
| Maximum Operating Temperature | +200 (°C) |
| Tolerance | ±5 (%) |
Inventory for the SMW551RJT by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| TE Connectivity |
1,830
|
|
Visit Site |
No issues have been reported for the SMW551RJT
