SN65LVDS049
2/2 Transceiver Full LVDS 16-TSSOP
Availability: Out of Stock
Package Type: TSSOP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN65LVDS049 by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

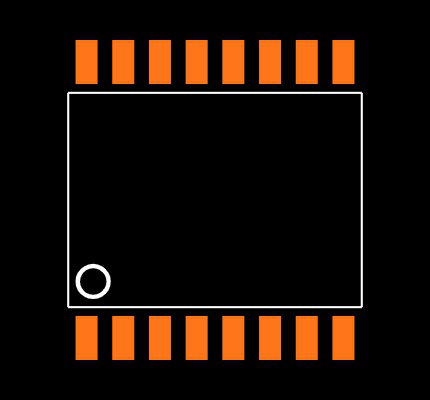

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN65LVDS049
| Part Name | SN65LVDS049 |
| Manufacturer | Texas Instruments |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Differential Input Low Threshold Voltage (V) | -100 (mV) |
| Transmission Data Rate | 400 (Mbps) |
| Dimensions | 5 x 4.4 x 1.15 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Ic Type | Transceiver IC |
| Minimum Operating Supply Voltage (V) | 3 V |
| Number Of Drivers | 2 |
| Height | 1.15 (mm) |
| Width | 4.4 (mm) |
| Length | 5 (mm) |
| Package Type | TSSOP |
| Output Type | Driver, Receiver |
| Input Type | LVDS, LVTTL |
| Differential Input High Threshold Voltage (V) | 0.1 (V) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 16 |
| Number Of Elements Per Chip | 2 |
