SN65LVDS4RSET
500-Mbps LVDS single high-speed receiver
Availability: In Stock
Package Type: UQFN-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN65LVDS4RSET by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

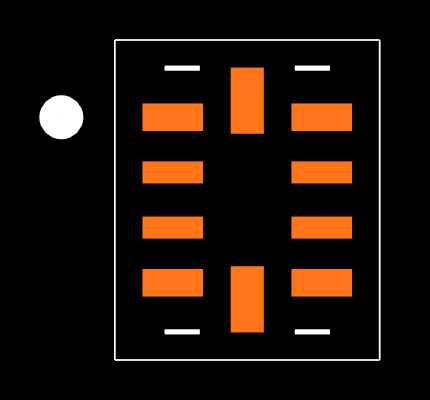

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN65LVDS4RSET
| Part Name | SN65LVDS4RSET |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Product Link | https://www.ti.com/store/ti/en/p/product/?p=SN65LVDS4RSET |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Elements Per Chip | 1 |
| Differential Input Low Threshold Voltage (V) | -50 (mV) |
| Transmission Data Rate | 500 (Mbps) |
| Input Type | LVDS |
| Maximum Operating Supply Voltage (V) | 1.98 V, 2.75 V, 3.6 V |
| Minimum Operating Supply Voltage (V) | 1.62 V, 2.25 V, 3.6 V |
| Number Of Drivers | 1 |
| Height | 0.55 (mm) |
| Width | 1.55 (mm) |
| Length | 2.05 (mm) |
| Package Type | UQFN |
| Output Type | LVCMOS, LVTTL |
| Minimum Operating Temperature | -40 °C |
| Ic Type | Receiver IC |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 10 |
| Dimensions | 2.05 x 1.55 x 0.55 (mm) |
