SN7417NE4
Buffers & Line Drivers Hex Buffer/Driver
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN7417NE4 by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

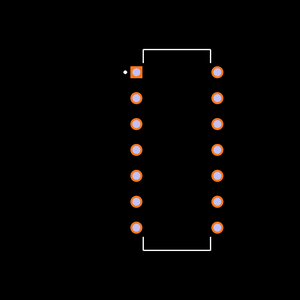

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN7417NE4
| Part Name | SN7417NE4 |
| Manufacturer | Texas Instruments |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Polarity | Non-Inverting |
| Maximum Low Level Output Current (A) | 40 (mA) |
| Dimensions | 19.3 x 6.35 x 4.57 (mm) |
| Maximum Operating Supply Voltage (V) | 5.25 V |
| Logic Function | Buffer, Driver |
| Maximum Propagation Delay Time Maximum Cl | 26 ns @ 5 V |
| Number Of Channels Per Chip | 6 |
| Logic Family | 74 |
| Package Type | PDIP |
| Output Type | Open Collector |
| Input Type | Single Ended |
| Ic Type | Buffer & Line Driver IC |
| Mounting Type | Through Hole |
| Minimum Operating Supply Voltage (V) | 4.75 V |
| Pin Count | 14 |
| Propagation Delay Test Condition | 50 (pF) |
| Maximum High Level Output Current (A) | -0.25 (mA) |
No issues have been reported for the SN7417NE4
