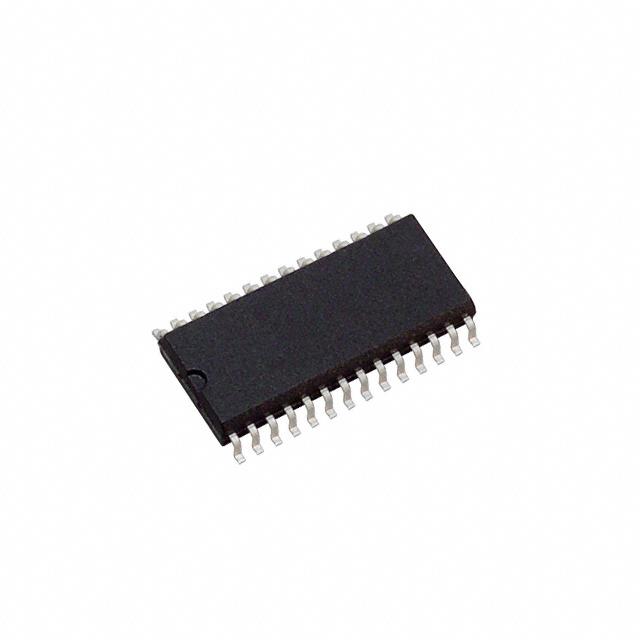

SN74ABT5402ADW
12-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
Availability: In Stock
Package Type: SOIC-28
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74ABT5402ADW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

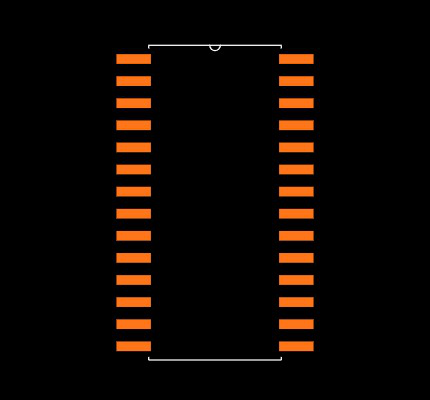

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74ABT5402ADW
| Part Name | SN74ABT5402ADW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Non-Inverting |
| Maximum Low Level Output Current (A) | 12 (mA) |
| Dimensions | 18.1 x 7.6 x 2.35 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Number Of Channels Per Chip | 12 |
| Maximum Propagation Delay Time Maximum Cl | 6.2 ns @ 50 pF |
| Logic Function | Buffer, Line Driver |
| Logic Family | ABT |
| Height | 2.35 (mm) |
| Width | 7.6 (mm) |
| Length | 18.1 (mm) |
| Package Type | SOIC |
| Output Type | 3 State |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 28 |
| Propagation Delay Test Condition | 50 (pF) |
| Maximum High Level Output Current (A) | -12 (mA) |
