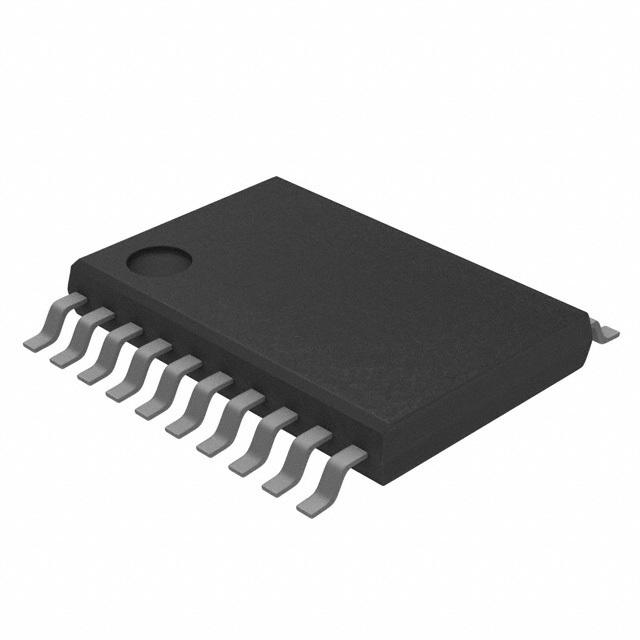

SN74AHC245PWR
Octal bus transceivers with tri-state outputs
Availability: In Stock
Package Type: TSSOP-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74AHC245PWR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74AHC245PWR
| Part Name | SN74AHC245PWR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Non-Inverting |
| Dimensions | 6.5 x 4.4 x 1.15 (mm) |
| Number Of Channels Per Chip | 8 |
| Maximum Propagation Delay Time Maximum Cl | 11.9 ns @ 3.3 V |
| Logic Family | AHC |
| Width | 4.4 (mm) |
| Input Level | CMOS |
| Maximum Low Level Output Current (A) | 8 (mA) |
| Maximum High Level Output Current (A) | -8 (mA) |
| Minimum Operating Supply Voltage (V) | 2 V |
| Package Type | TSSOP |
| Number Of Elements Per Chip | 1 |
| Maximum Operating Temperature | +85 °C |
| Output Level | CMOS |
| Length | 6.5 (mm) |
| Pin Count | 20 |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Mounting Type | Surface Mount |
| Logic Function | Bus Transceiver |
| Height | 1.15 (mm) |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50 (pF) |
Inventory for the SN74AHC245PWR by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
31,107
|
|
Visit Site | |
|
★ Featured
|
28,540
|
2,500 x $0.14
|
Visit Site | |
| Arrow Europe |
16,000
|
|
Visit Site | |
| Texas Instruments |
|
|
Visit Site | |
| Verical |
185
|
45 x $0.13
|
Visit Site |
No issues have been reported for the SN74AHC245PWR
If you experienced any issues with the symbol or footprint, please report it.
