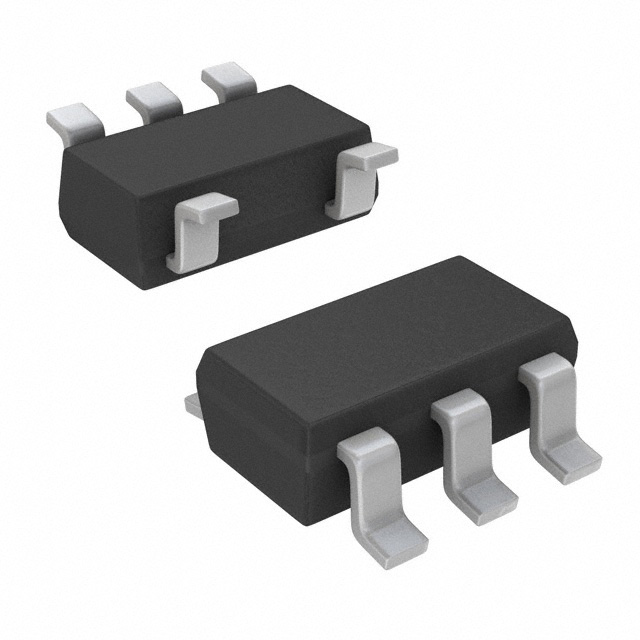

SN74AUC1G07DCKR
Single 0.8-V to 2.7-V high speed buffer with open-drain outputs
Availability: In Stock
Package Type: SC70-5
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74AUC1G07DCKR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

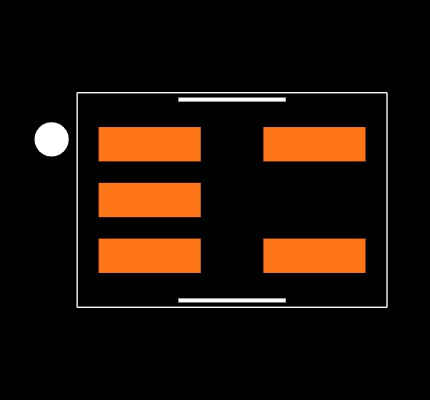

BuildFootprint
No web preview
This Footprint is Available for

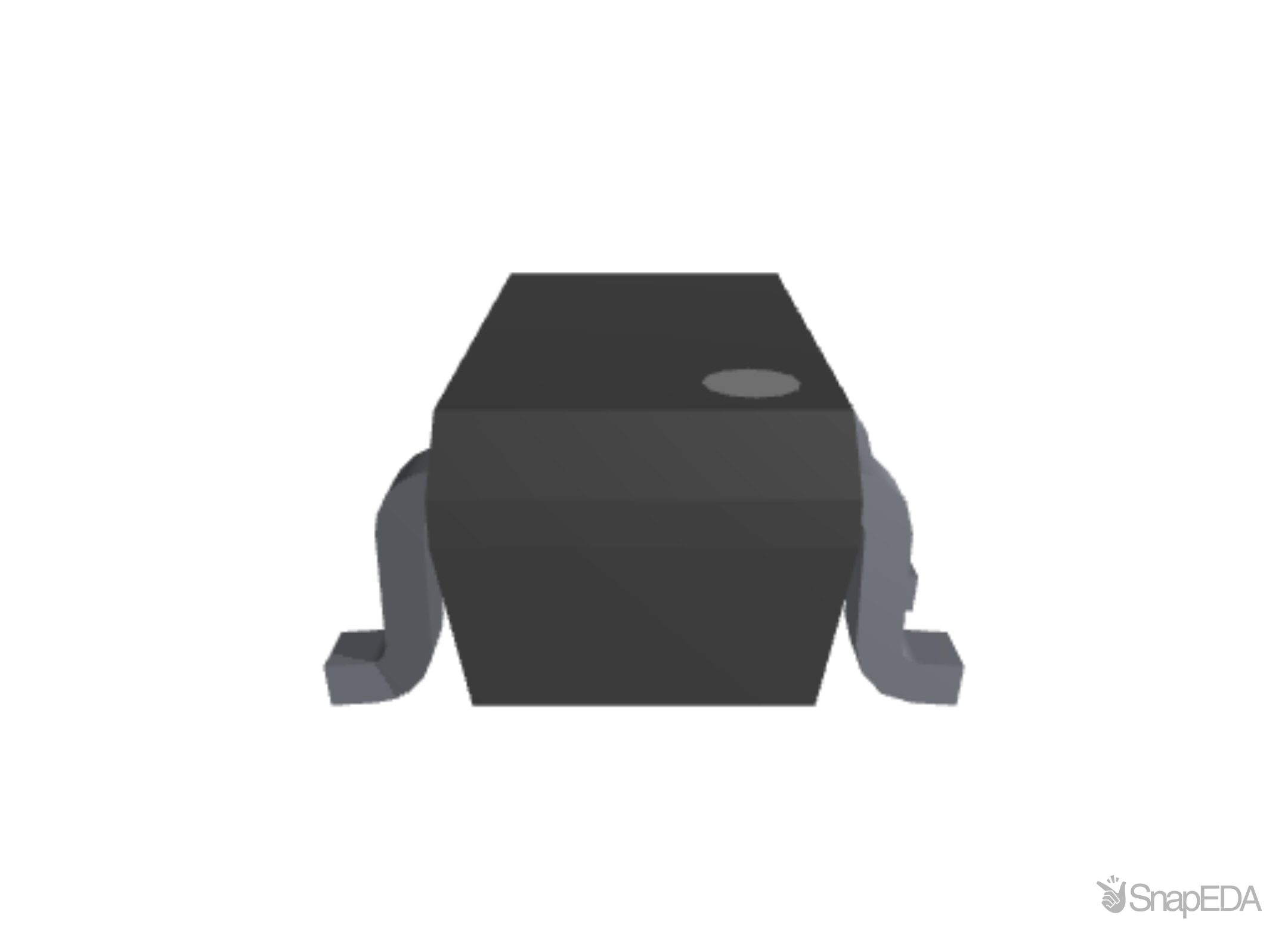

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74AUC1G07DCKR
| Part Name | SN74AUC1G07DCKR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Non-Inverting |
| Maximum Low Level Output Current (A) | 9 (mA) |
| Dimensions | 2 x 1.25 x 0.9 (mm) |
| Maximum Operating Supply Voltage (V) | 2.7 V |
| Output Type | Open Drain |
| Mounting Type | Surface Mount |
| Maximum Propagation Delay Time Maximum Cl | 2.5 ns @ 1.8 V |
| Logic Function | Buffer, Driver |
| Number Of Channels | 1 |
| Logic Family | AUC |
| Height | 0.9 (mm) |
| Width | 1.25 (mm) |
| Length | 2 (mm) |
| Package Type | SC-70 |
| Pin Count | 5 |
| Input Type | Single Ended |
| Schmitt Trigger Input | No |
| Minimum Operating Supply Voltage (V) | 0.8 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 30 (pF) |
