SN74AUC1G17DBVR
Single 0.8-V to 2.7-V high speed buffer with Schmitt-Trigger inputs
Availability: In Stock
Package Type: SOT-23-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74AUC1G17DBVR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for

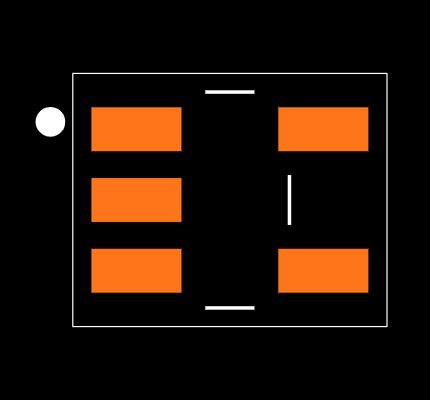

Footprint
No web preview
This Footprint is Available for

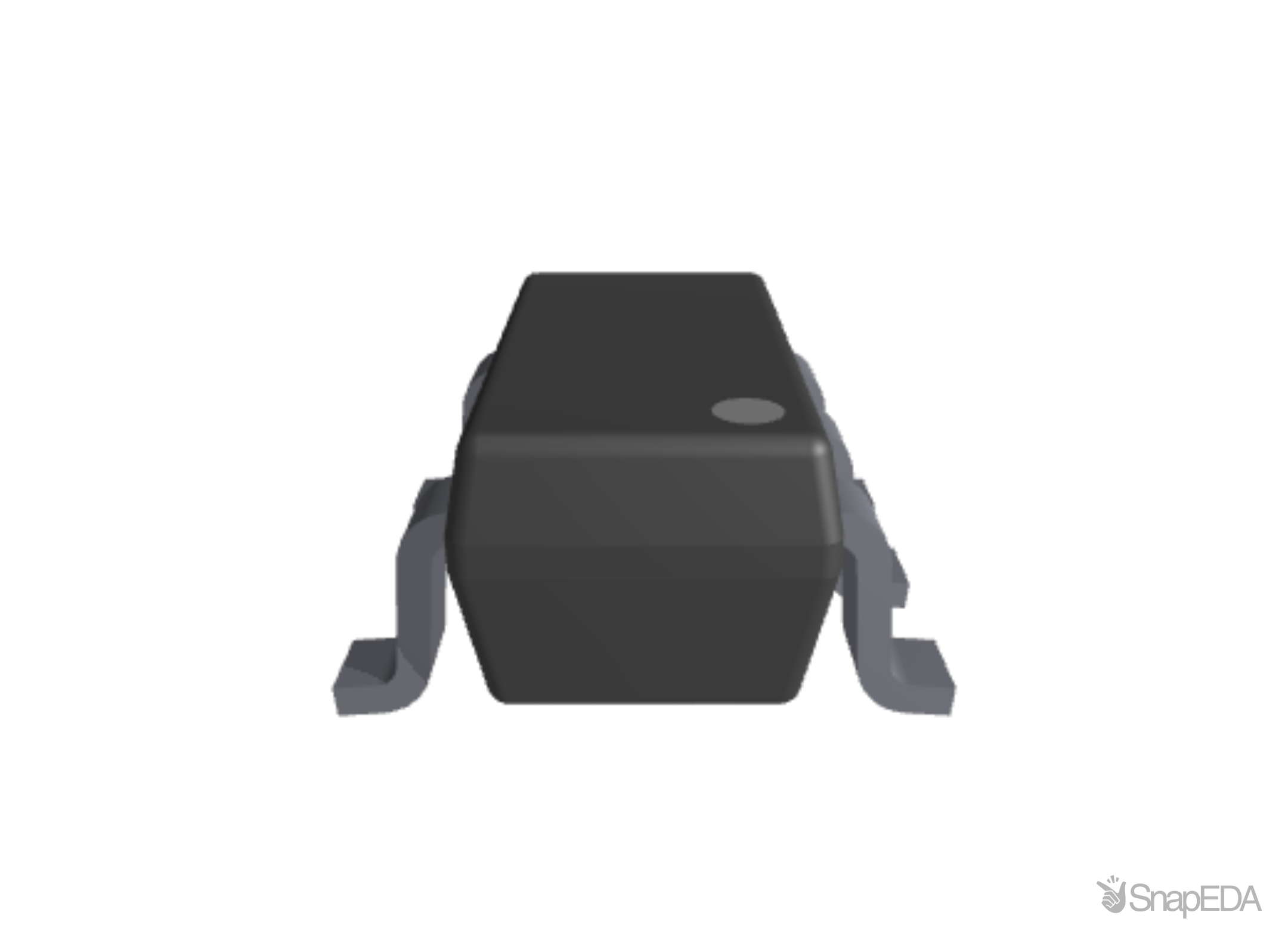

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74AUC1G17DBVR
| Part Name | SN74AUC1G17DBVR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Non-Inverting |
| Maximum Low Level Output Current (A) | 9 (mA) |
| Dimensions | 2.9 x 1.6 x 1.15 (mm) |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Minimum Operating Supply Voltage (V) | 0.8 V |
| Maximum Propagation Delay Time Maximum Cl | 2.5 ns @ 2.5 V |
| Minimum Operating Temperature | -40 °C |
| Logic Function | Schmitt Trigger Buffer |
| Logic Family | AUC |
| Height | 1.15 (mm) |
| Width | 1.6 (mm) |
| Length | 2.9 (mm) |
| Number Of Channels | 1 |
| Input Type | Single Ended |
| Schmitt Trigger Input | Yes |
| Maximum Operating Supply Voltage (V) | 2.7 V |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 5 |
| Propagation Delay Test Condition | 30 (pF) |
| Maximum High Level Output Current (A) | -9 (mA) |
Inventory for the SN74AUC1G17DBVR by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
8,144
|
|
Visit Site | |
|
★ Featured
|
5,899
|
|
Visit Site | |
|
★ Featured
|
9,500
|
5,795 x $0.06
|
Visit Site | |
| Texas Instruments |
169,677
|
|
Visit Site |
No issues have been reported for the SN74AUC1G17DBVR
