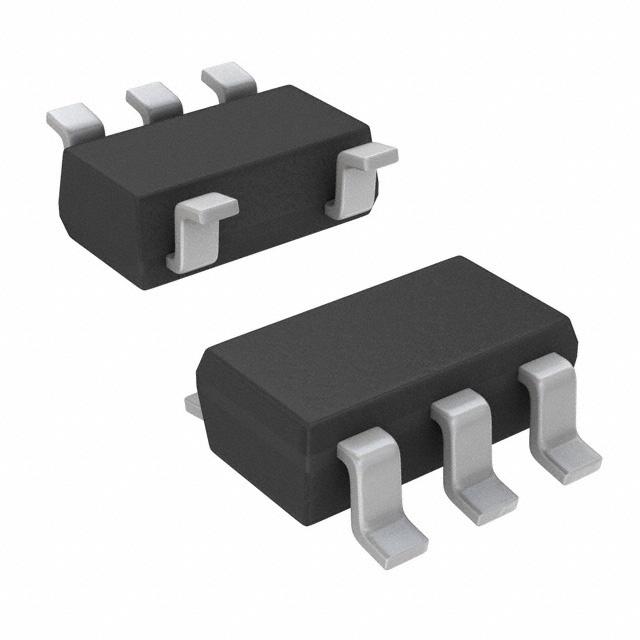

SN74AUP1T34DCKR
1-Bit Unidirectional Voltage-Level Translator
Availability: In Stock
Package Type: SC70-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74AUP1T34DCKR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

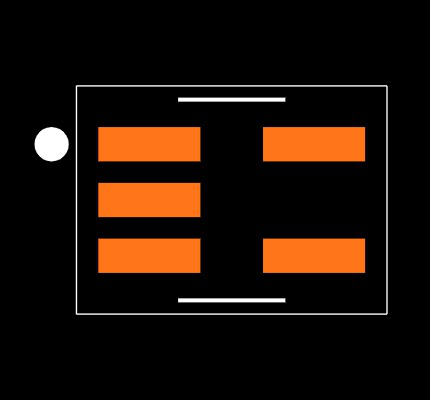

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74AUP1T34DCKR
| Part Name | SN74AUP1T34DCKR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Low Level Output Current (A) | 6 (mA) |
| Maximum High Level Output Current (A) | -6 (mA) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Maximum Propagation Delay Time @ Maximum Cl | 45.65 ns@ 30 pF |
| Minimum Operating Supply Voltage (V) | 0.9 V |
| Logic Function | Translator |
| Logic Family | AUP |
| Package Type | SC-70 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 5 |
| Propagation Delay Test Condition | 30 (pF) |
| Dimensions | 2.15 x 1.4 x 1 (mm) |
Inventory for the SN74AUP1T34DCKR by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
11,305
|
|
Visit Site | |
|
★ Featured
|
114,000
|
1,635 x $0.18
|
Visit Site | |
| Texas Instruments |
317,132
|
|
Visit Site |
No issues have been reported for the SN74AUP1T34DCKR
If you experienced any issues with the symbol or footprint, please report it.
