SN74HC175N
Quadruple D-Type Flip-Flops With Clear
Availability: In Stock
Package Type: PDIP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74HC175N by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

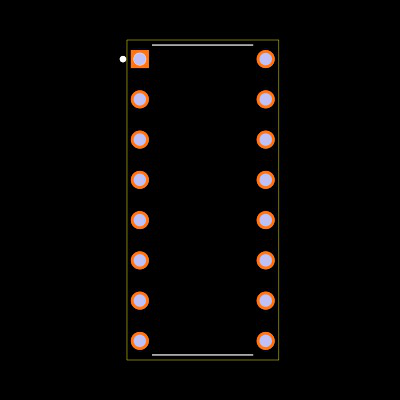

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74HC175N
| Part Name | SN74HC175N |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Inverting, Non-Inverting |
| Triggering Type | Positive Edge |
| Dimensions | 19.3 x 6.35 x 4.57 (mm) |
| Maximum Operating Supply Voltage (V) | 6 V |
| Set Reset | Master Reset |
| Maximum Propagation Delay Time Maximum Cl | 150 ns @ 2 V |
| Minimum Operating Temperature | -40 °C |
| Logic Function | D Type |
| Logic Family | HC |
| Height | 4.57 (mm) |
| Width | 6.35 (mm) |
| Length | 19.3 (mm) |
| Package Type | PDIP |
| Number Of Elements Per Chip | 4 |
| Input Type | Single Ended |
| Mounting Type | Through Hole |
| Minimum Operating Supply Voltage (V) | 2 V |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 16 |
| Propagation Delay Test Condition | 50 (pF) |
| Output Signal Type | Differential |
Inventory for the SN74HC175N by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
27,612
|
434 x $0.69
|
Visit Site | |
|
★ Featured
|
2,520
|
|
Visit Site | |
|
★ Featured
|
150
|
N/A | Visit Site | |
| Texas Instruments |
75,304
|
|
Visit Site | |
| Verical |
885
|
|
Visit Site |
No issues have been reported for the SN74HC175N
If you experienced any issues with the symbol or footprint, please report it.
