SN74HCT00D
4-ch, 2-input, 4.5-V to 5.5-V NAND gates with TTL-compatible CMOS inputs
Availability: In Stock
Package Type: SOIC-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74HCT00D by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for

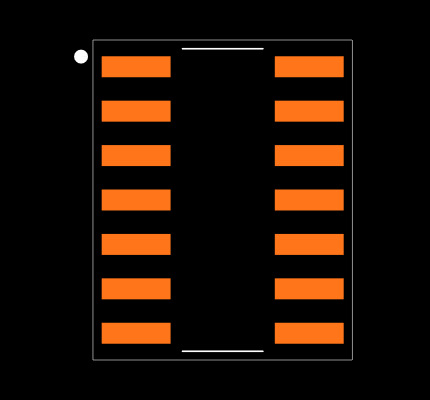

Footprint
No web preview
This Footprint is Available for

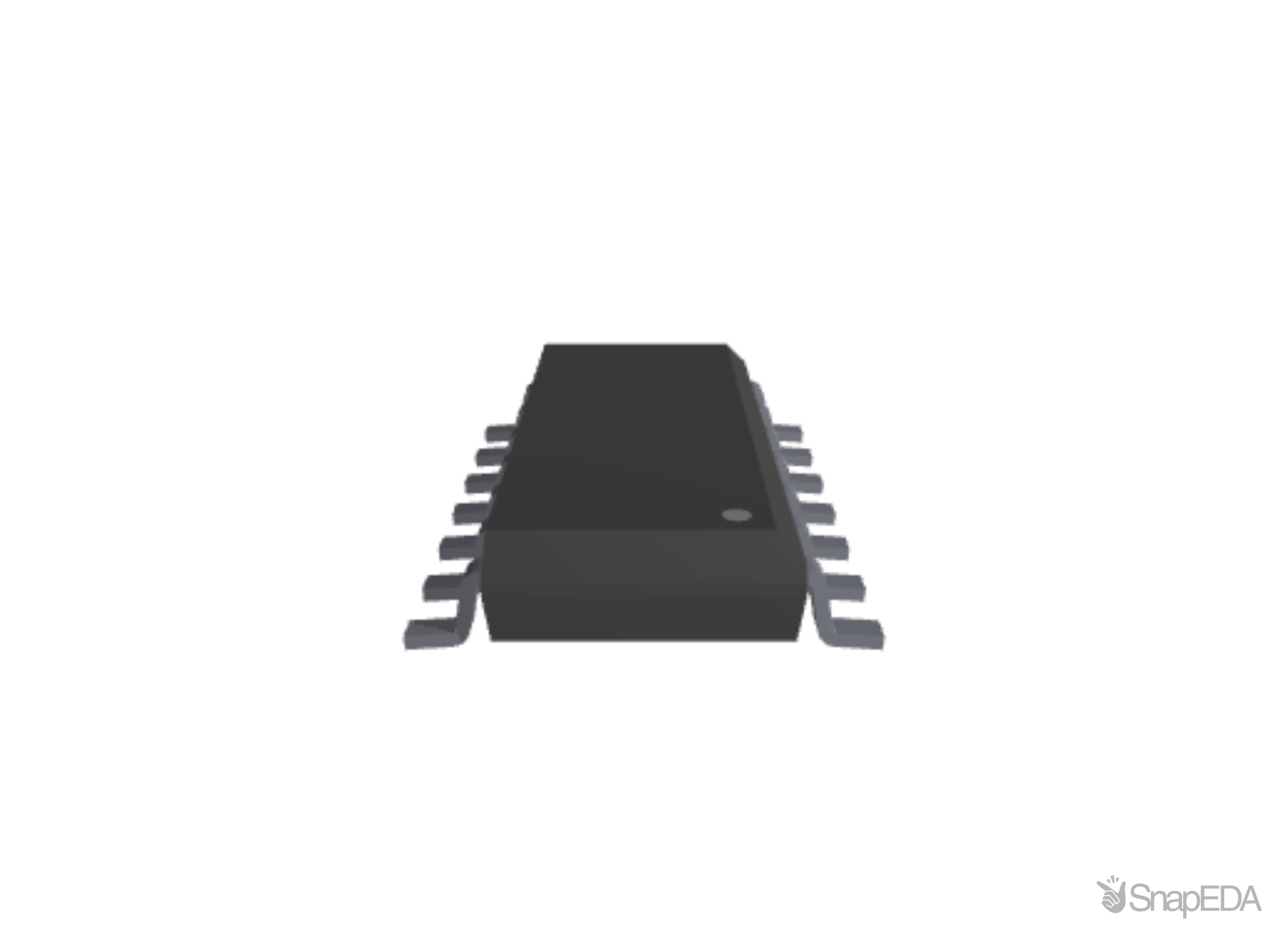

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74HCT00D
| Part Name | SN74HCT00D |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 8.75 x 4 x 1.5 (mm) |
| Maximum Propagation Delay Time @ Maximum Cl | 22 ns @ 5.5 V |
| Logic Family | HCT |
| Width | 4 (mm) |
| Input Type | TTL |
| Maximum Low Level Output Current (A) | 4 (mA) |
| Maximum High Level Output Current (A) | -4 (mA) |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Output Type | CMOS |
| Package Type | SOIC |
| Maximum Operating Temperature | +85 °C |
| Number Of Inputs Per Gate | 2 |
| Length | 8.75 (mm) |
| Number Of Elements | 4 |
| Pin Count | 14 |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Mounting Type | Surface Mount |
| Logic Function | NAND |
| Height | 1.5 (mm) |
| Minimum Operating Temperature | -40 °C |
| Schmitt Trigger Input | No |
| Propagation Delay Test Condition | 50 (pF) |
Inventory for the SN74HCT00D by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
58,161
|
404 x $0.74
|
Visit Site | |
|
★ Featured
|
5,134
|
|
Visit Site | |
|
★ Featured
|
53,186
|
3,725 x $0.09
|
Visit Site | |
| Texas Instruments |
1,596
|
|
Visit Site | |
| Verical |
1,022
|
|
Visit Site |
No issues have been reported for the SN74HCT00D
