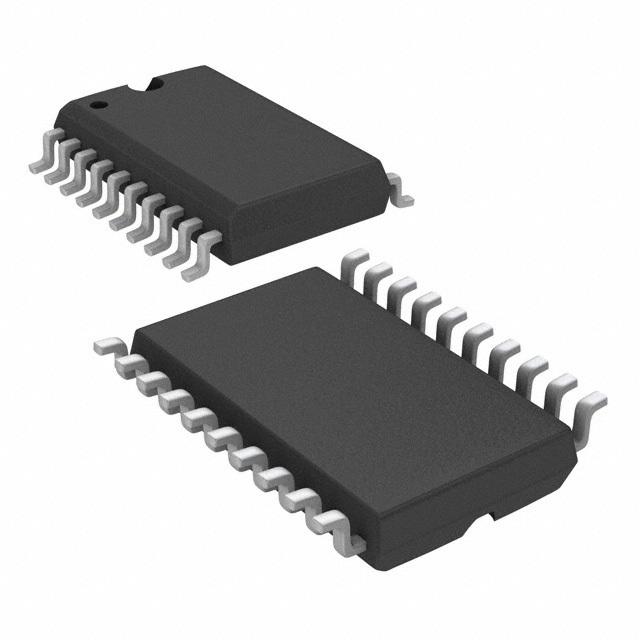

SN74LS373DW
Octal D-type Transparent Latches with 3-state Outputs
Availability: In Stock
Package Type: SOIC-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74LS373DW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

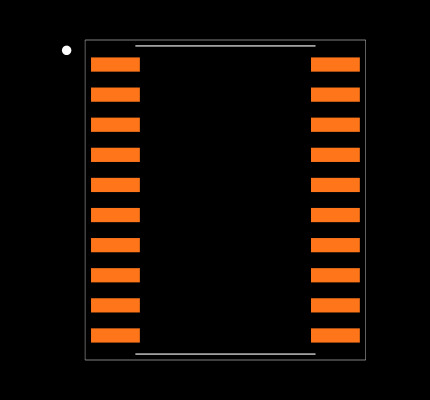

Footprint
No web preview
This Footprint is Available for

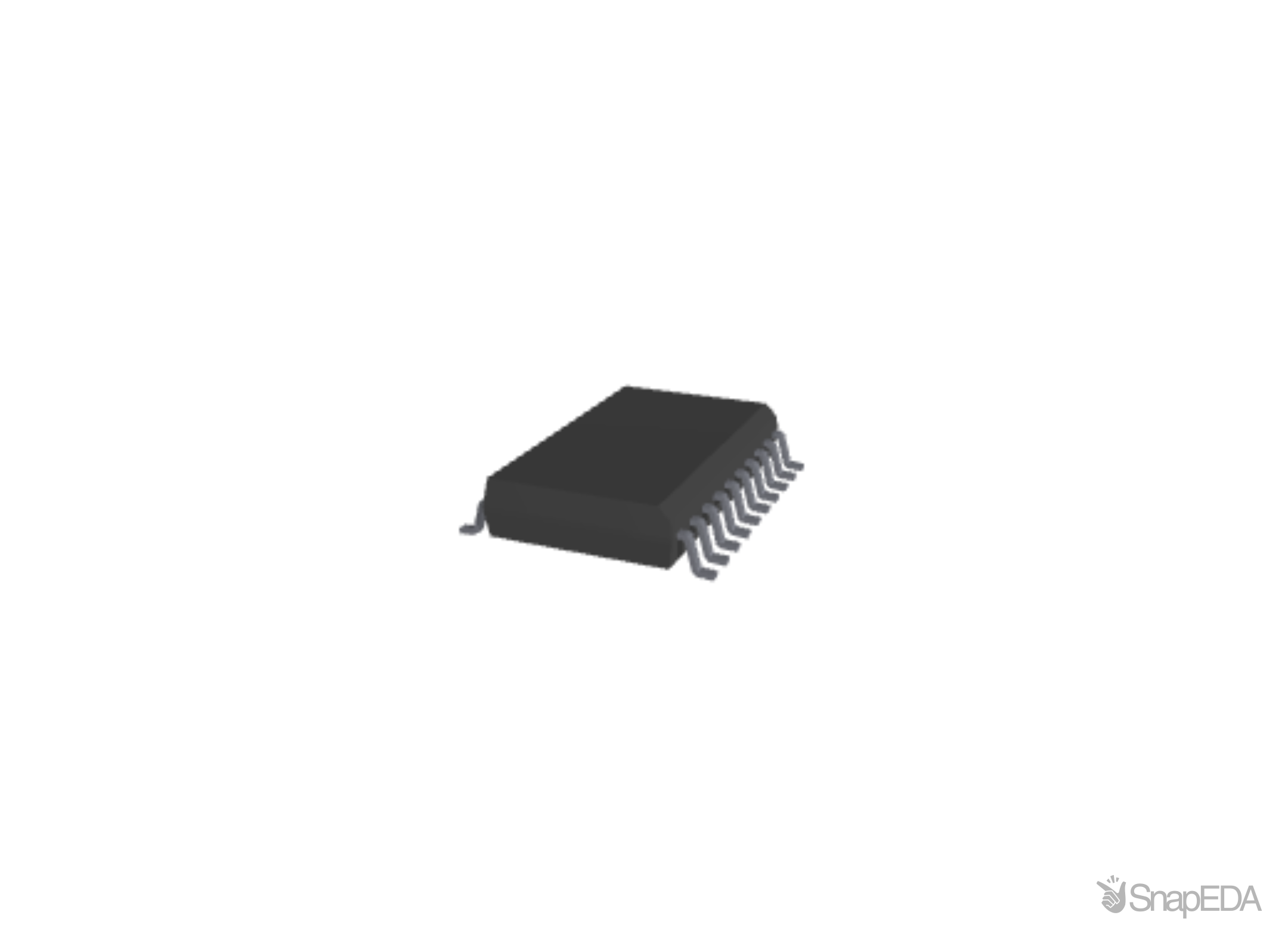

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74LS373DW
| Part Name | SN74LS373DW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Non-Inverting |
| Number Of Bits | 8 (bit) |
| Dimensions | 12.8 x 7.52 x 2.35 (mm) |
| Maximum Operating Supply Voltage (V) | 5.25 V |
| Minimum Operating Supply Voltage (V) | 4.75 V |
| Latch Mode | Transparent |
| Logic Family | LS |
| Height | 2.35 (mm) |
| Width | 7.52 (mm) |
| Length | 12.8 (mm) |
| Package Type | SOIC |
| Output Type | 3 State |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 20 |
| Latching Element | D Type |
Inventory for the SN74LS373DW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,594
|
394 x $0.76
|
Visit Site | |
|
★ Featured
|
55,000
|
N/A | Visit Site | |
| Texas Instruments |
7,214
|
|
Visit Site | |
| Verical |
5,000
|
|
Visit Site |
No issues have been reported for the SN74LS373DW
