SN74LVC126APW
4-ch, 1.65-V to 3.6-V buffers with 3-state outputs
Availability: In Stock
Package Type: TSSOP-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74LVC126APW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

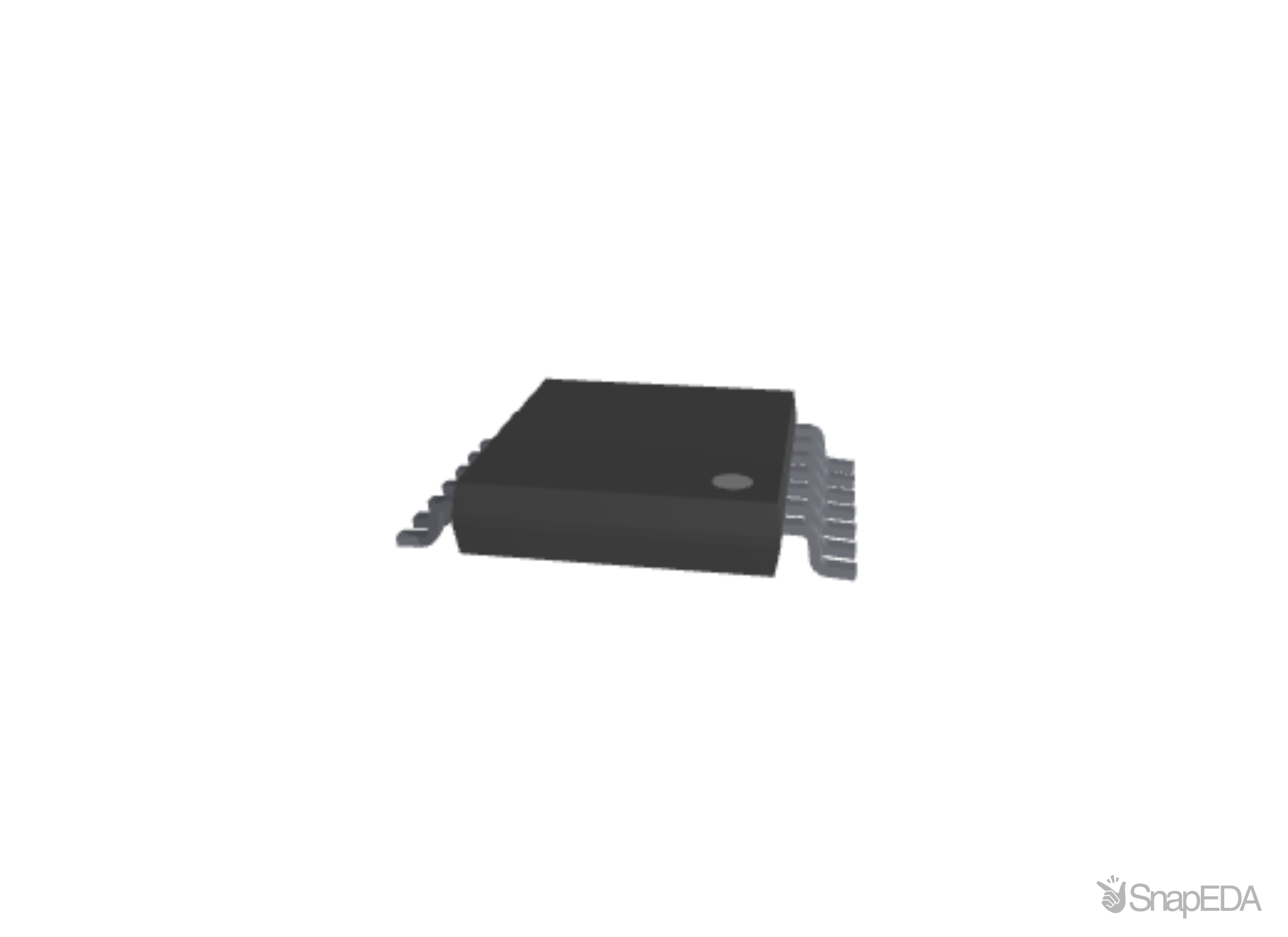

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74LVC126APW
| Part Name | SN74LVC126APW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Non-Inverting |
| Maximum Low Level Output Current (A) | 24 (mA) |
| Dimensions | 5 x 4.4 x 1.15 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Number Of Channels Per Chip | 4 |
| Maximum Propagation Delay Time Maximum Cl | 5 ns @ 2.7 V |
| Logic Function | Buffer, Line Driver |
| Logic Family | LVC |
| Package Type | TSSOP |
| Output Type | 3 State |
| Input Type | Single Ended |
| Ic Type | Buffer & Line Driver IC |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 1.65 V |
| Pin Count | 14 |
| Propagation Delay Test Condition | 50 (pF) |
| Maximum High Level Output Current (A) | -24 (mA) |
