SN74LVC2T45
Voltage Level Translator Bidirectional 1 Circuit 2 Channel 420Mbps 8-DSBGA, 8-WCSP (1.9x0.9)
Availability: In Stock
Package Type: XFBGA-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74LVC2T45 by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

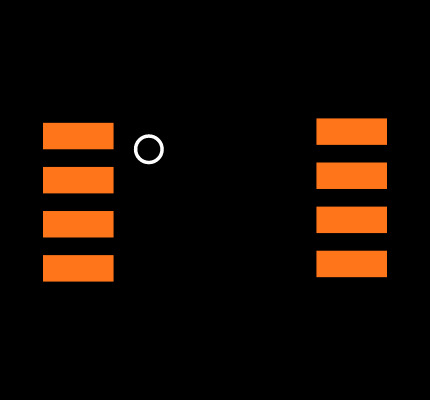

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74LVC2T45
| Part Name | SN74LVC2T45 |
| Manufacturer | Texas Instruments |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Maximum Low Level Output Current (A) | 32 (mA) |
| Dimensions | 2.95 x 2.8 x 1.29 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Minimum Operating Supply Voltage (V) | 1.65 V |
| Maximum Propagation Delay Time Maximum Cl | 17.7 ns @ 1.8 V |
| Logic Function | Bus Transceiver |
| Logic Family | LVC |
| Package Type | SSOP |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
| Propagation Delay Test Condition | 15 (pF) |
| Maximum High Level Output Current (A) | -32 (mA) |
Inventory for the SN74LVC2T45 by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,400
|
3,110 x $0.10
|
Visit Site |
No issues have been reported for the SN74LVC2T45
If you experienced any issues with the symbol or footprint, please report it.
