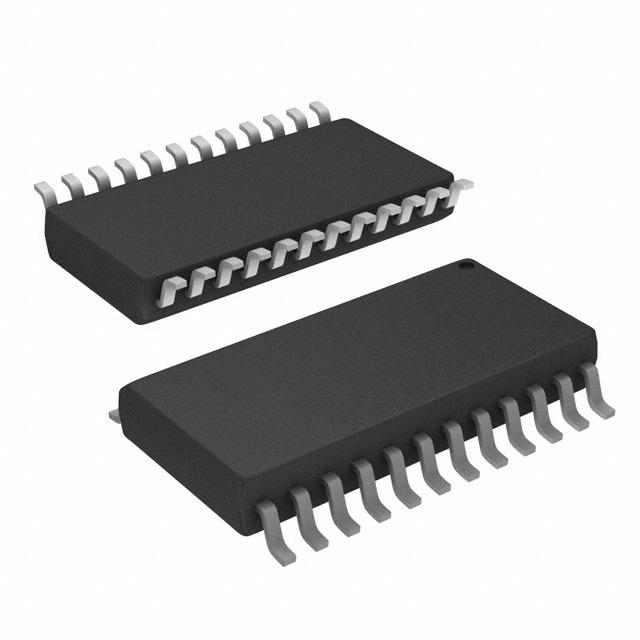

SN74LVC4245ADW
Octal Bus Transceiver And 3.3-V To 5-V Shifter With 3-State Outputs
Availability: In Stock
Package Type: SOIC-24
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74LVC4245ADW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74LVC4245ADW
| Part Name | SN74LVC4245ADW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Non-Inverting |
| Dimensions | 15.4 x 7.52 x 2.35 (mm) |
| Maximum Propagation Delay Time @ Maximum Cl | 6.7 ns@ 5 V |
| Number Of Channels Per Chip | 8 |
| Logic Family | LVC |
| Width | 7.52 (mm) |
| Input Level | LVTTL |
| Maximum Low Level Output Current (A) | 24 (mA) |
| Maximum High Level Output Current (A) | -24 (mA) |
| Minimum Operating Supply Voltage (V) | 2.7 V, 4.5 V |
| Package Type | SOIC |
| Number Of Elements Per Chip | 1 |
| Maximum Operating Temperature | +85 °C |
| Priced To Clear | Yes |
| Output Level | LVTTL |
| Length | 15.4 (mm) |
| Pin Count | 24 |
| Mounting Type | Surface Mount |
| Maximum Operating Supply Voltage (V) | 3.6 V, 5.5 V |
| Logic Function | Bus Transceiver |
| Height | 2.35 (mm) |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50 (pF) |
Inventory for the SN74LVC4245ADW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,756
|
|
Visit Site | |
|
★ Featured
|
7,952
|
|
Visit Site | |
|
★ Featured
|
19,520
|
1,060 x $0.33
|
Visit Site | |
| Texas Instruments |
31,347
|
|
Visit Site |
No issues have been reported for the SN74LVC4245ADW
