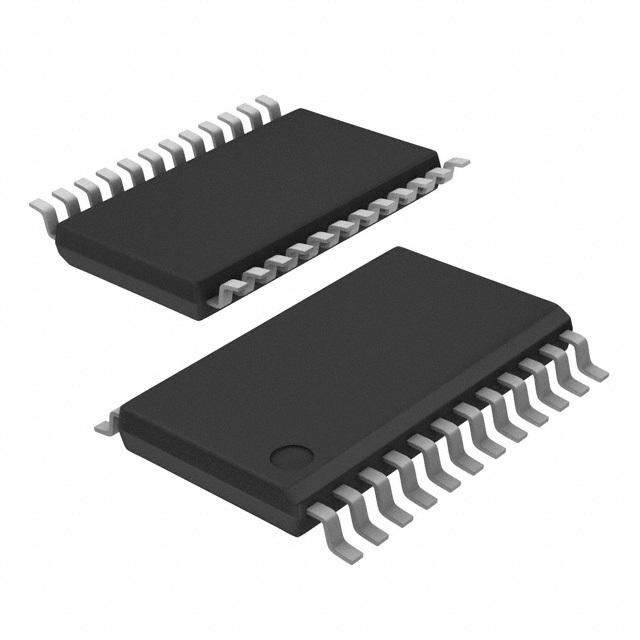

SN74LVCH8T245PW
8-bit dual-supply bus transceiver with configurable voltage translation and 3-state outputs
Availability: In Stock
Package Type: TSSOP-24
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN74LVCH8T245PW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

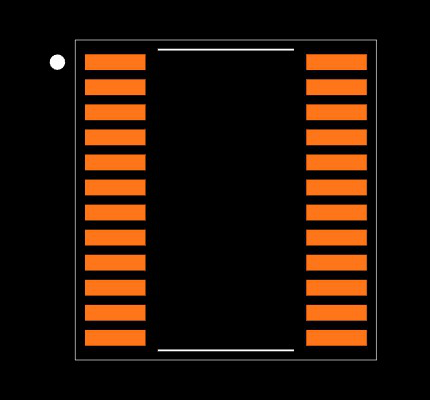

BuildFootprint
No web preview
This Footprint is Available for

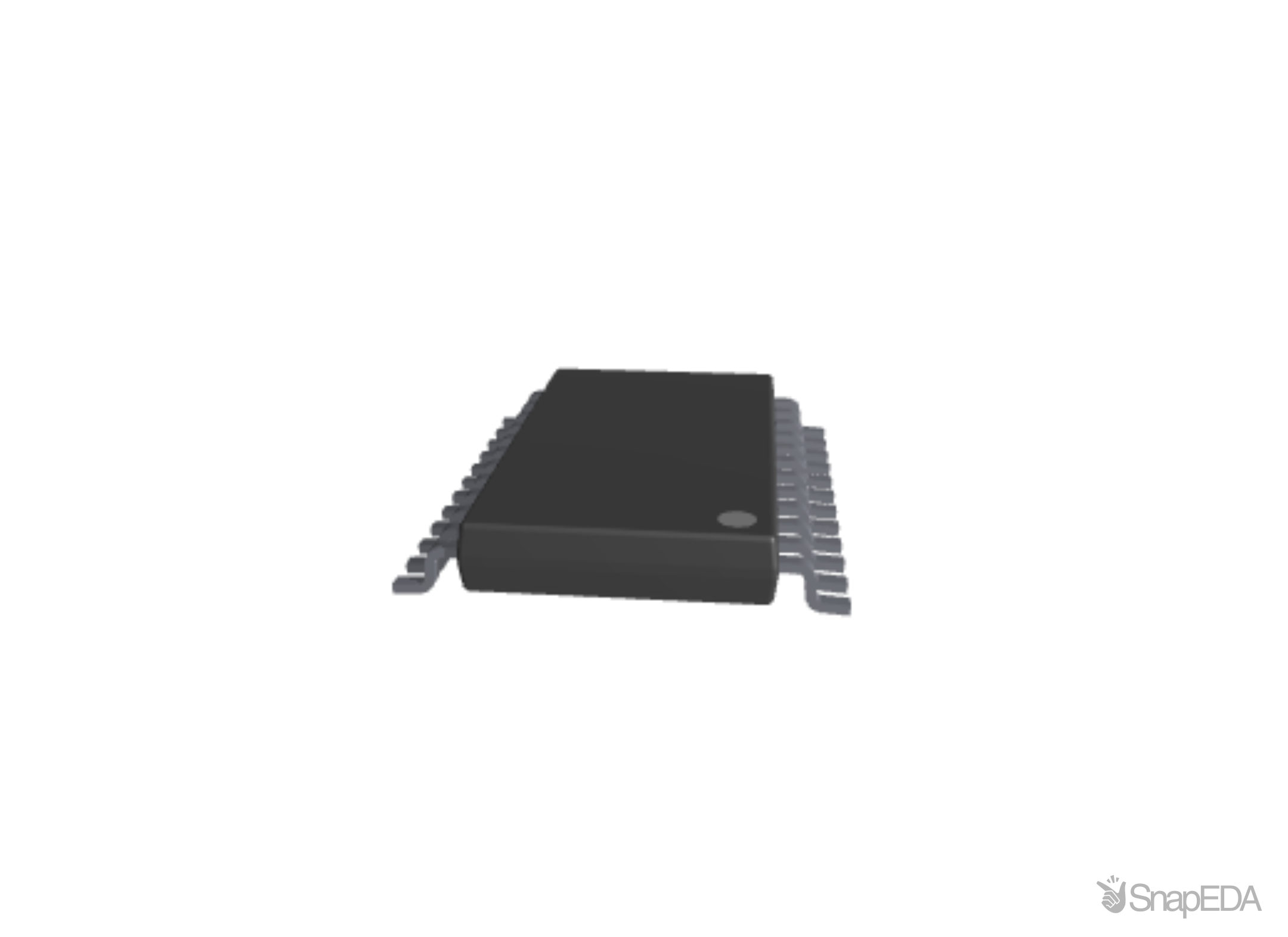

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN74LVCH8T245PW
| Part Name | SN74LVCH8T245PW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Non-Inverting |
| Maximum Low Level Output Current (A) | 32 (mA) |
| Dimensions | 7.9 x 4.5 x 1.05 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Output Level | 3-State |
| Input Level | CMOS |
| Number Of Channels Per Chip | 8 |
| Maximum Propagation Delay Time Maximum Cl | 29.6 (ns) |
| Logic Function | Bus Transceiver |
| Logic Family | LVCH |
| Height | 1.05 (mm) |
| Width | 4.5 (mm) |
| Length | 7.9 (mm) |
| Package Type | TSSOP |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 1.65 V |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 24 |
| Maximum High Level Output Current (A) | -32 (mA) |
Inventory for the SN74LVCH8T245PW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
1,030
|
265 x $1.32
|
Visit Site | |
| Texas Instruments |
2,501
|
|
Visit Site | |
| Verical |
227
|
|
Visit Site |
No issues have been reported for the SN74LVCH8T245PW
If you experienced any issues with the symbol or footprint, please report it.
