SN75477P
100-V dual peripheral driver with NAND logic inputs
Availability: In Stock
Package Type: PDIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SN75477P by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

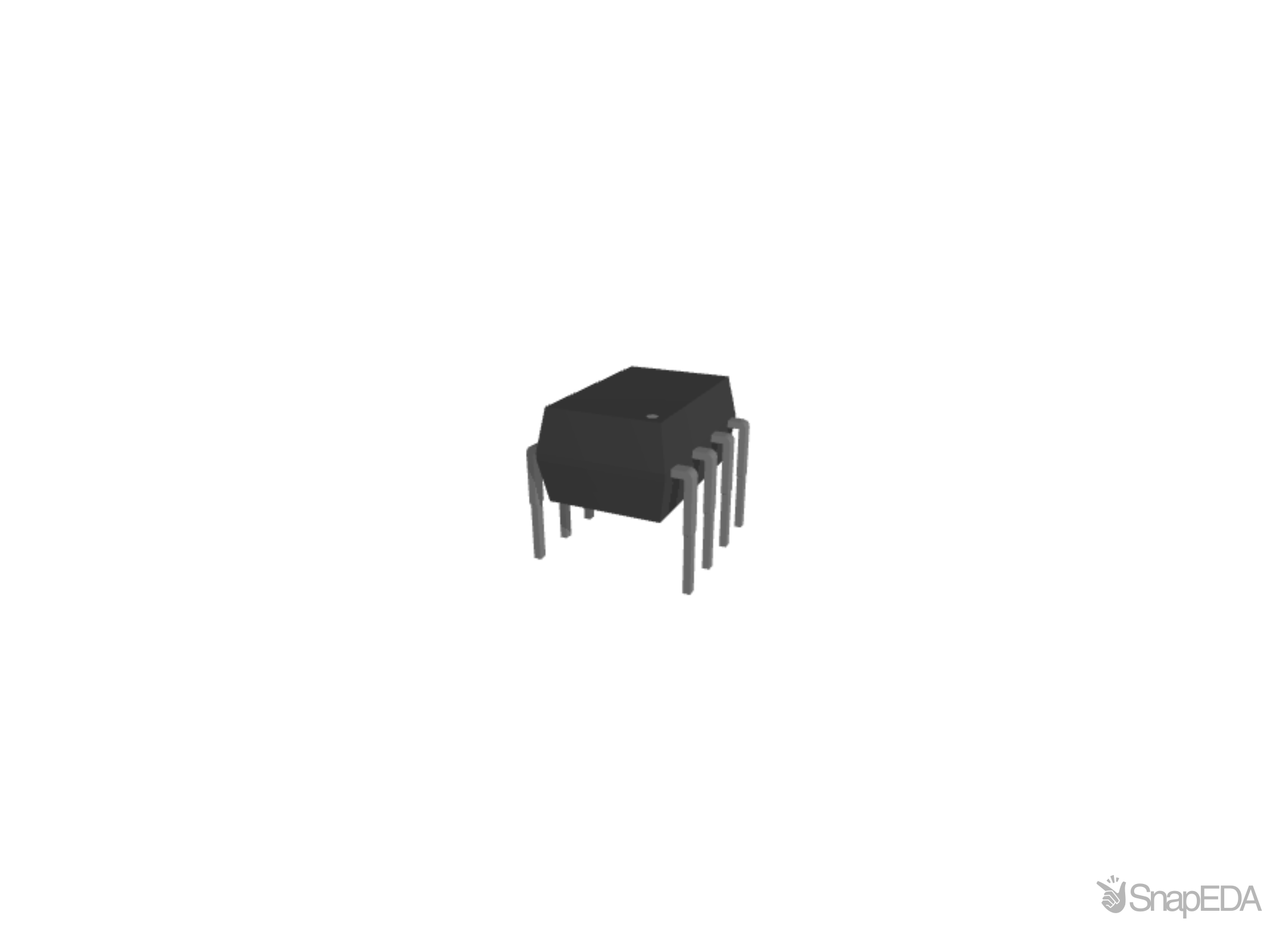

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SN75477P
| Part Name | SN75477P |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10.16 x 6.6 x 4.57 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Maximum Power Dissipation | 1 W |
| Minimum Operating Supply Voltage (V) | 4.5 V |
| Length | 10.16 (mm) |
| Number Of Drivers | 2 |
| Height | 4.57 (mm) |
| Maximum Turn On Delay Time | 125 (ns) |
| Width | 6.6 (mm) |
| Maximum Supply Current (A) | 17 mA, 75 mA |
| Package Type | PDIP |
| Minimum Operating Temperature | 0 °C |
| Maximum Turn Off Delay Time | 125 (ns) |
| Mounting Type | Through Hole |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 5.5 V |
