SO96-1-01

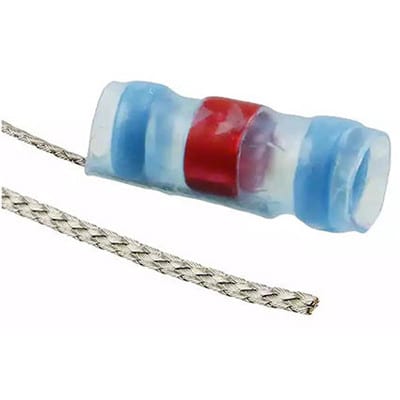

SOLDER SLEEVE DEVICE SHIELD TERMINATION WITH BRAID, HIGH TEMP | TE Connectivity SO96-1-01
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SO96-1-01 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SO96-1-01
| Part Name | SO96-1-01 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Pre-Installed Lead | Yes |
| MIL/NAS Specification (MIL-S-83519, NAS-1747) | No |
| Temperature Indicator Type | Thermochromic |
| Expanded Inside Diameter (Min) | .075 |
| Shield Outside Diameter (Min) | .9 |
| Splice Type | Shield Terminator |
| Operating Temperature (Max) | 175 |
| TE Internal Number | 679968-000 |
| Termination Method | Solder |
| Dielectric Outside Diameter (Max) | .5 |
| Product Type | Shield Terminator |
| Wire Temperature (Max) | 150 |
| Lead Stranding | 40x38 AWG |
| Resistance Properties | Immersion Protection |
| Overall Length | .65 |
| Lead Plating Material | Nickel |
| RoHS | True |
| Pre-Installed Lead Type | Braid Strap |
| Recovered Inside Diameter (Max) | .02 |
| Government Qualified | No |
| Jacket Outside Diameter | .075 |
| Temperature Indicator | Yes |
| Pre-Installed Lead Wire Size | 22 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the SO96-1-01 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
500 x $3.71
|
Visit Site | |
|
★ Featured
|
288
|
|
Visit Site | |
| Onlinecomponents |
103
|
|
Visit Site | |
| Verical |
102
|
|
Visit Site |
No issues have been reported for the SO96-1-01
If you experienced any issues with this part, please report it.
