SP339EER1-L
3/5 Transceiver Full RS232, RS422, RS485 40-QFN (6x6)
Availability: In Stock
Package Type: QFN-40
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SP339EER1-L by MaxLinear and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

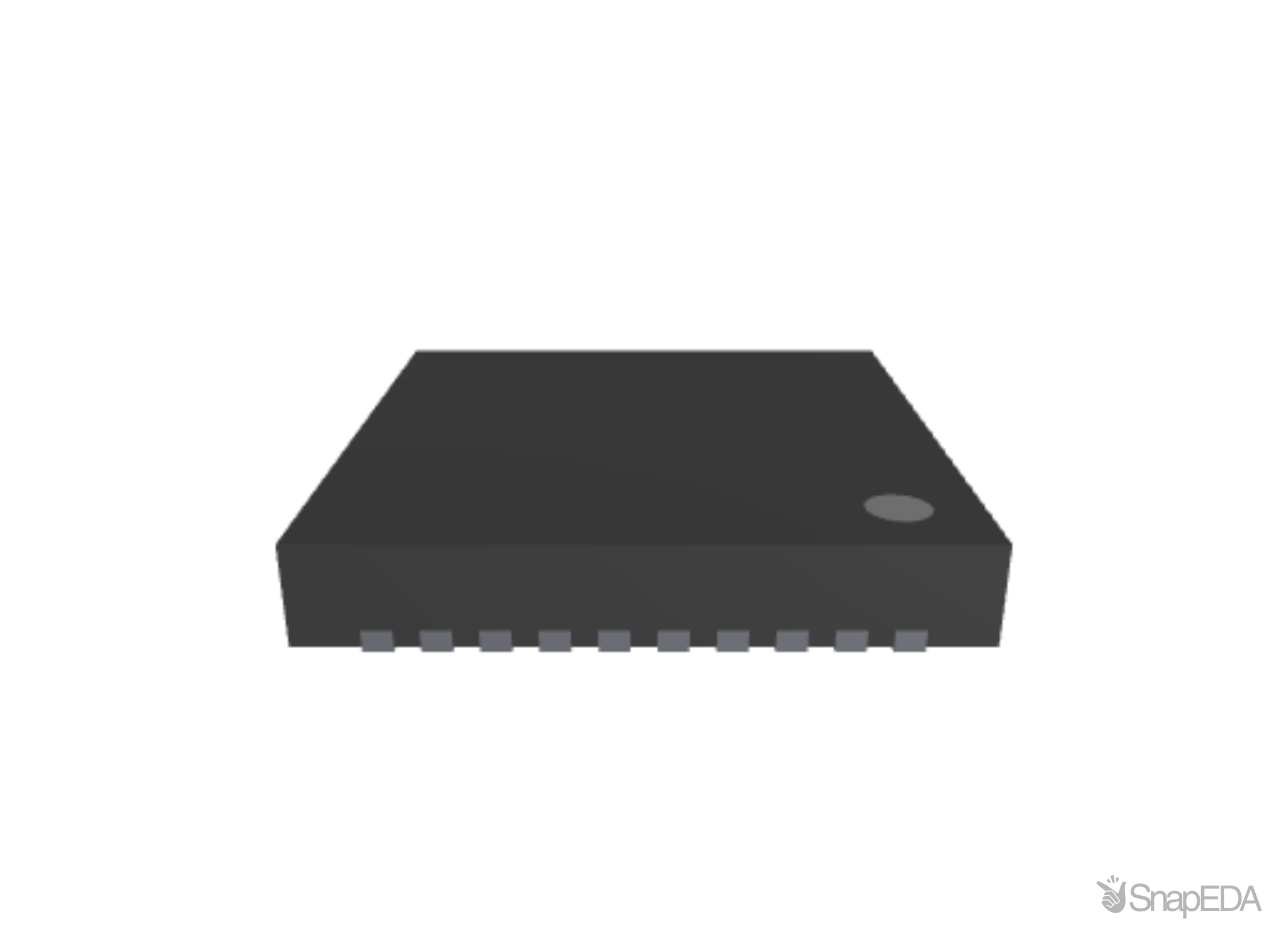

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SP339EER1-L
| Part Name | SP339EER1-L |
| Manufacturer | MaxLinear, Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 6 x 6 x 0.95 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Height | 0.95 (mm) |
| Width | 6 (mm) |
| Length | 6 (mm) |
| Package Type | QFN |
| Minimum Operating Temperature | -40 °C |
| Number Of Transmitters | 3 |
| Pin Count | 40 |
