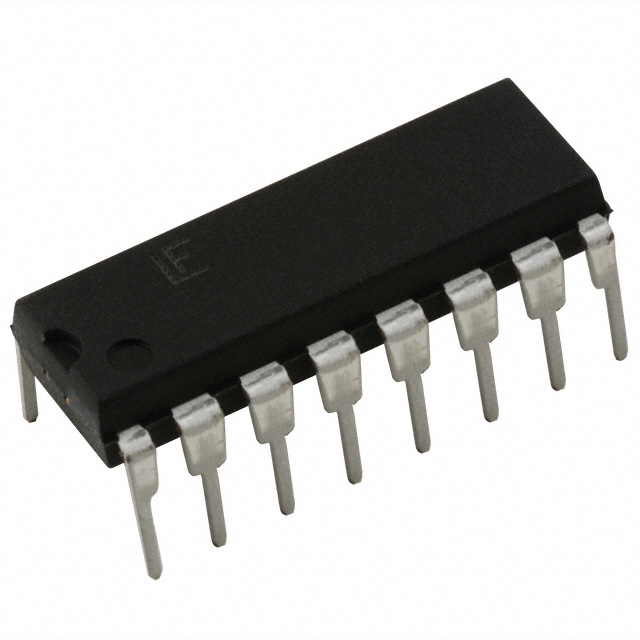

SP720APP
DIODE, TVS, ESD, 14 CH, 16DIP; Diode Case Style: DIP; No. of Pins: 16; Peak Pulse Current Ippm: 5A
Availability: In Stock
Package Type: DIP-16
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SP720APP by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

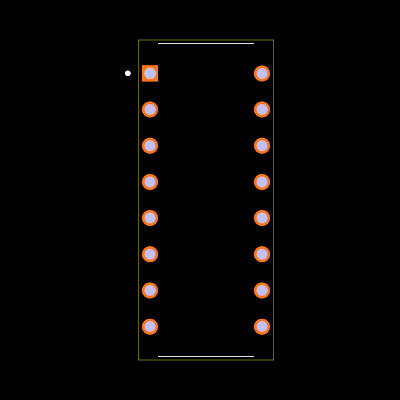

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SP720APP
| Part Name | SP720APP |
| Manufacturer | Littelfuse Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | ±2 (A) |
| Capacitance | 3 (pF) |
| Dimensions | 19.68 x 7.11 x 4.95 (mm) |
| Mounting Type | Through Hole |
| Direction Type | Bi-Directional |
| Maximum Operating Temperature | +105 °C |
| Maximum Reverse Leakage Current (A) | 20 (nA) |
| Esd Protection | Yes |
| Height | 4.95 (mm) |
| Width | 7.11 (mm) |
| Length | 19.68 (mm) |
| Package Type | PDIP |
| Number Of Elements Per Chip | 14 |
| Minimum Operating Temperature | -40 °C |
| Diode Configuration | Array |
| Pin Count | 16 |
| Test Current (A) | 1 (A) |
Inventory for the SP720APP by Littelfuse from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,282
|
|
Visit Site | |
|
★ Featured
|
2,581
|
|
Visit Site | |
|
★ Featured
|
889
|
134 x $2.25
|
Visit Site | |
| Arrow Europe |
594
|
1 x $1.29
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Farnell UK |
|
1,000 x $1.65
|
Visit Site | |
| Newark |
349
|
|
Visit Site | |
| RS Americas |
77
|
|
Visit Site | |
| Verical |
750
|
750 x $2.50
|
Visit Site |
No issues have been reported for the SP720APP
If you experienced any issues with the symbol or footprint, please report it.
