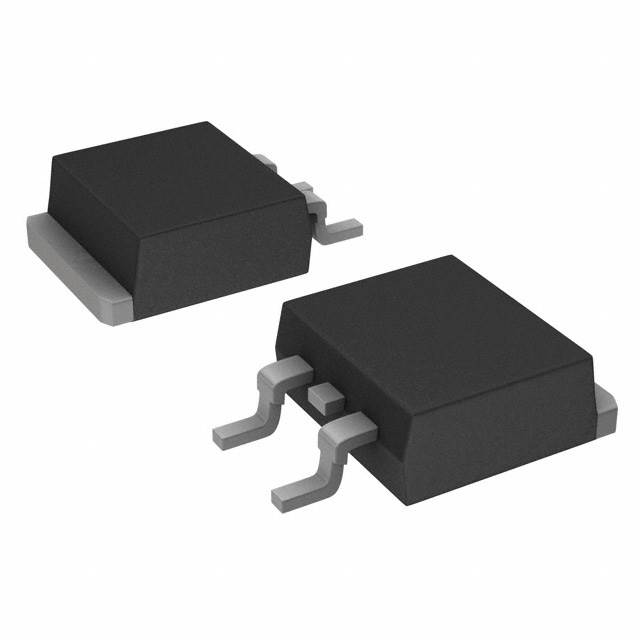

SPB80P06P

Name: SPB80P06P
Brand: Infineon

P-Channel 60 V 80A (Tc) 340W (Tc) Surface Mount PG-TO263-3-2

Availability: Out of Stock

Package Type: TO-263

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the SPB80P06P by Infineon and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

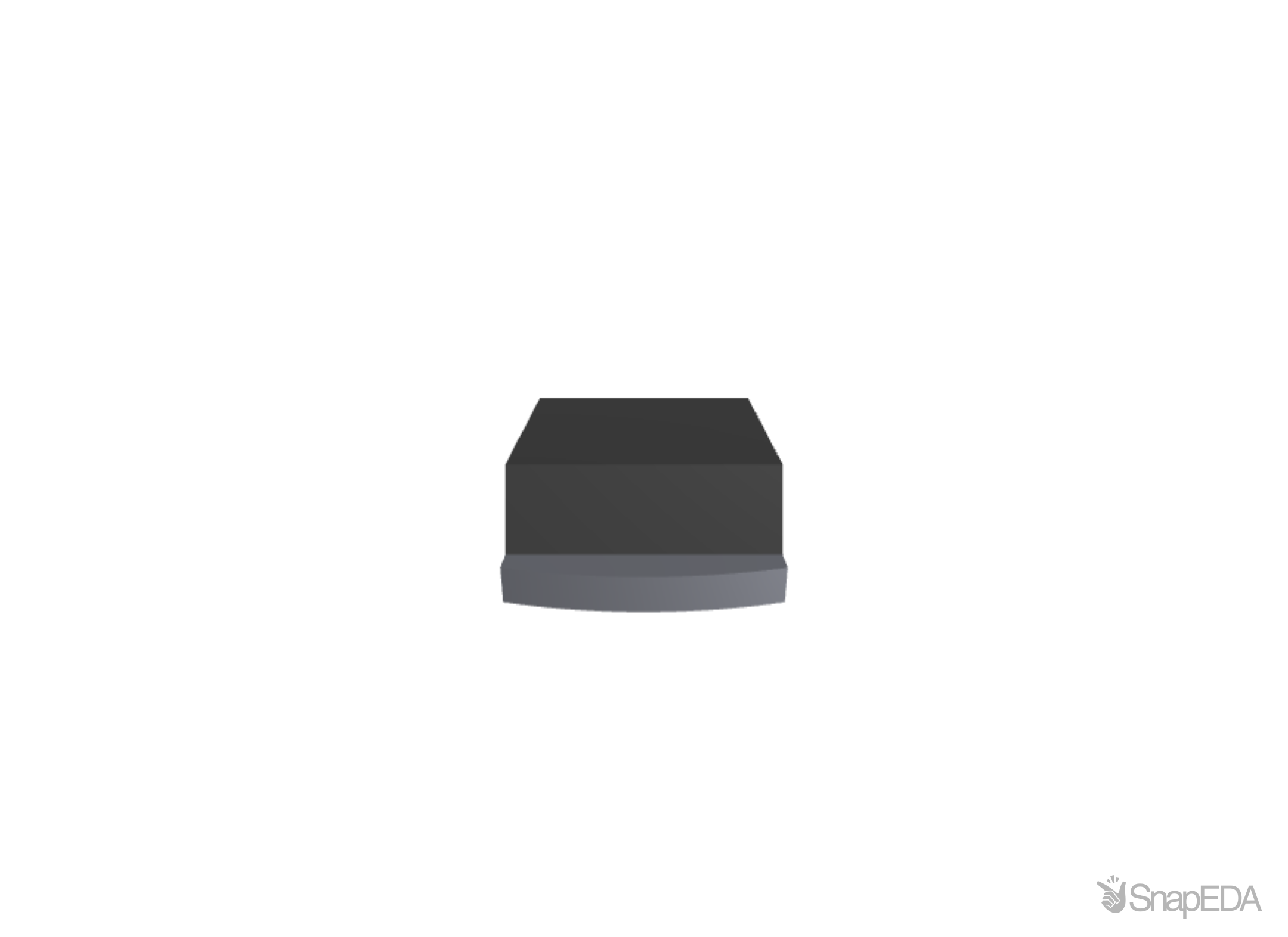

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the SPB80P06P

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the SPB80P06P

Part Name	SPB80P06P
Manufacturer	Infineon Technologies
Life Cycle Status	Obsolete
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Pin Count	3
Maximum Drain Source Voltage (V)	60 V
Maximum Continuous Drain Current (A)	80 A
Mounting Type	Surface Mount
Maximum Gate Source Voltage (V)	-20 V, +20 V
Series	SIPMOS®
Maximum Power Dissipation	340 W
Maximum Gate Threshold Voltage (V)	4 (V)
Channel Mode	Enhancement
Height	4.57 (mm)
Width	9.45 (mm)
Length	10.31 (mm)
Package Type	D2PAK (TO-263)
Number Of Elements Per Chip	1
Minimum Operating Temperature	-55 °C
Minimum Gate Threshold Voltage (V)	2.1 (V)
Typical Gate Charge Vgs	115 nC @ 10 V
Channel Type	P
Maximum Operating Temperature	+175 °C
Maximum Drain Source Resistance	23 mΩ
Transistor Configuration	Single

We could not find inventory or pricing across major distributors for the SPB80P06P by Infineon.
