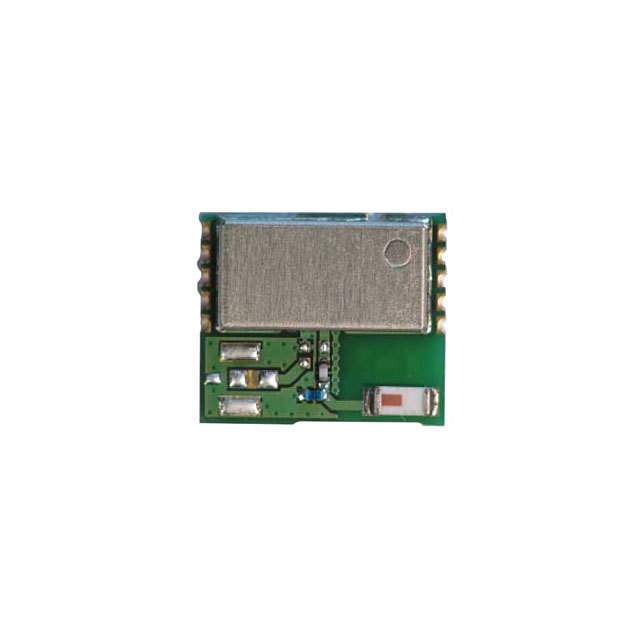

SPBTLE-RF
Bluetooth Bluetooth v4.1 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Availability: Out of Stock
Package Type: SMD-11
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SPBTLE-RF by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol

No web preview
This Symbol is Available for

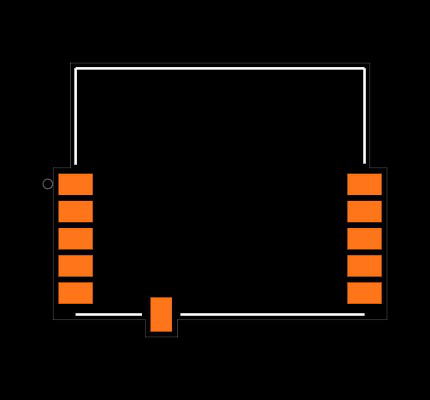

Footprint

No web preview
This Footprint is Available for

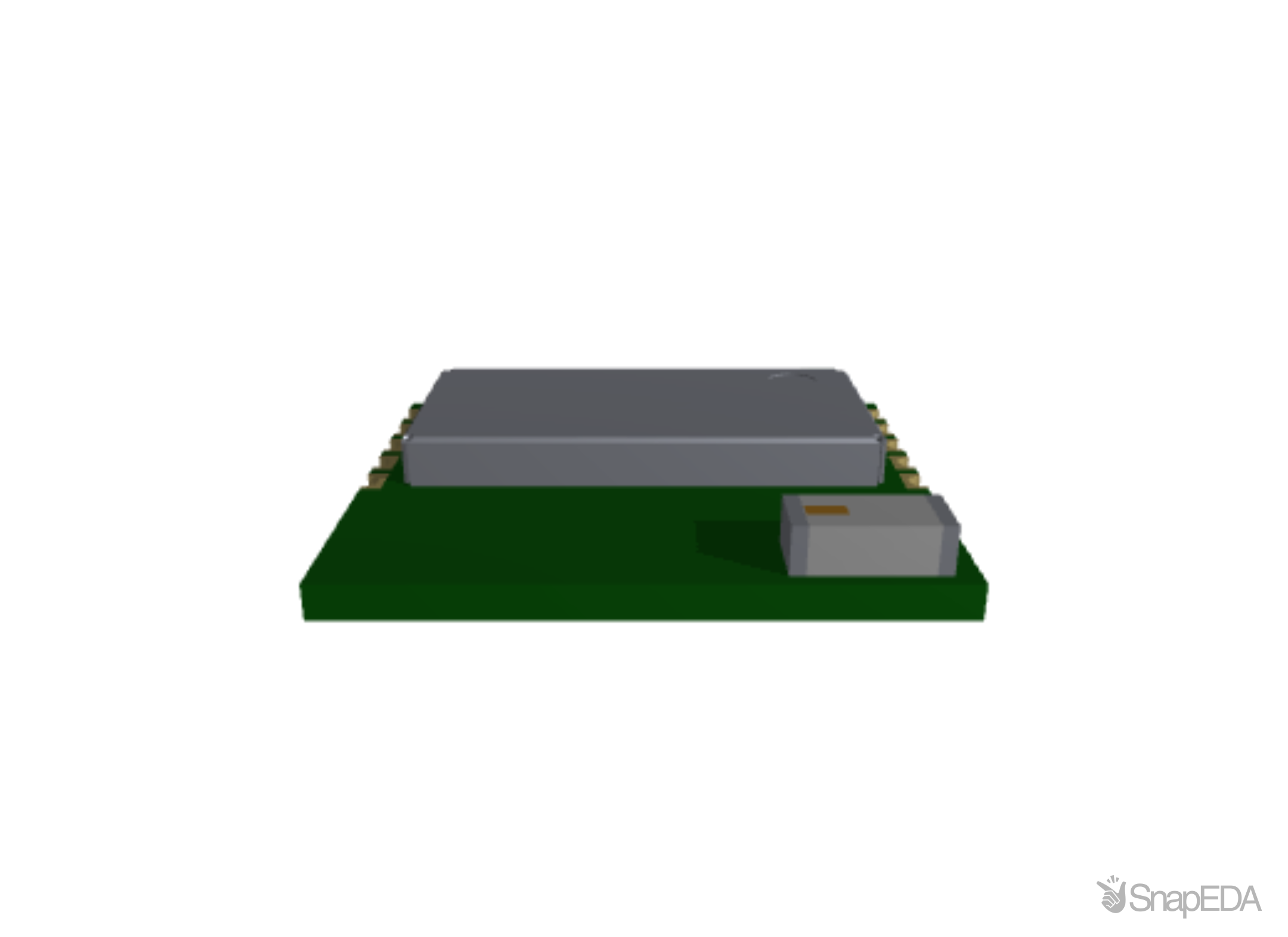

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the SPBTLE-RF
Part Name | SPBTLE-RF |
Manufacturer | STMicroelectronics |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Receiver Sensitivity | -88 (dBm) |
Supported Bus Interfaces | SPI |
Dimensions | 13.5 x 11.5 x 2 (mm) |
Maximum Output Power | 4 (dBm) |
Height | 2 (mm) |
Width | 11.5 (mm) |
Length | 13.5 (mm) |
Minimum Operating Temperature | -40 °C |
Supported I O Interfaces | IRQ, RESET, SPI |
Maximum Operating Temperature | +85 °C |
Bluetooth Version | 4.1 |
No issues have been reported for the SPBTLE-RF
If you experienced any issues with the symbol or footprint, please report it.
