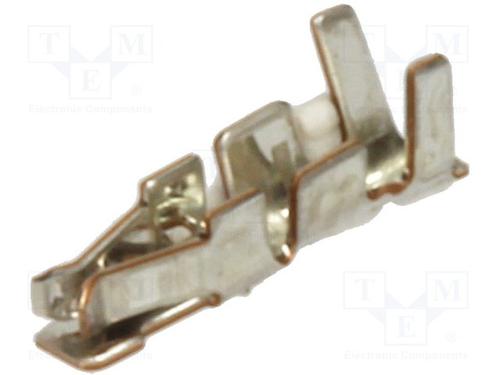

SPHD-001T-P0.5
PHD Series 2 mm 26-22 AWG Secure Locking Device Contact Connector
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SPHD-001T-P0.5 by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SPHD-001T-P0.5
| Part Name | SPHD-001T-P0.5 |
| Manufacturer | JST |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | PA, PBV, PHD |
| Minimum Operating Temperature | -25 (°C) |
| Maximum Current (A) | 3 (A) |
| Maximum Contact Resistance | 20 (mΩ) |
| Minimum Wire Size (Mm²) | 0.1 (mm²) |
| Minimum Wire Size (Awg) | 26 (AWG) |
| Maximum Wire Size (Mm²) | 0.3 (mm²) |
| Gender | Female |
| Maximum Wire Size (Awg) | 22 (AWG) |
| Contact Plating | Tin |
| Termination Method | Crimp |
| For Use With | PA, PBV and PHD Connector Housings |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Phosphor Bronze |
Inventory for the SPHD-001T-P0.5 by JST from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,248,000
|
|
Visit Site | |
|
★ Featured
|
912,792
|
|
Visit Site | |
|
★ Featured
|
439,800
|
58,825 x $0.005
|
Visit Site | |
| Arrow Europe |
952,000
|
|
Visit Site | |
| Buerklin |
45,700
|
|
Visit Site | |
| Chip One Stop |
102,085
|
|
Visit Site | |
| Compona AG |
528,000
|
|
Visit Site | |
| Conrad |
6,121
|
|
Visit Site | |
| CoreStaff |
142,221
|
|
Visit Site | |
| Heilind Americas |
1,884,000
|
|
Visit Site | |
| Interstate Connecting Components |
314,000
|
|
Visit Site | |
| TME |
244,568
|
|
Visit Site | |
| TTI Europe |
424,000
|
|
Visit Site | |
| Verical |
239,143
|
4,465 x $0.02
|
Visit Site |
No issues have been reported for the SPHD-001T-P0.5
