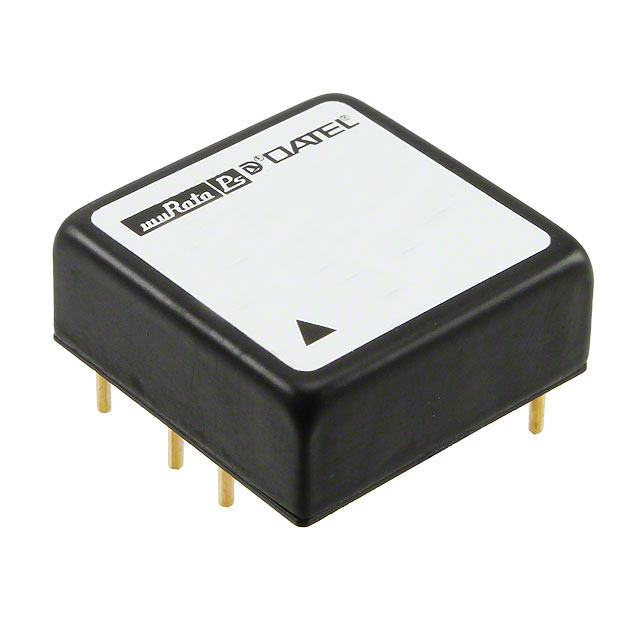

SPM15-120-Q12P-C
Isolated Module DC DC Converter 1 Output 12V 1.3A 9V - 36V Input
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SPM15-120-Q12P-C by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

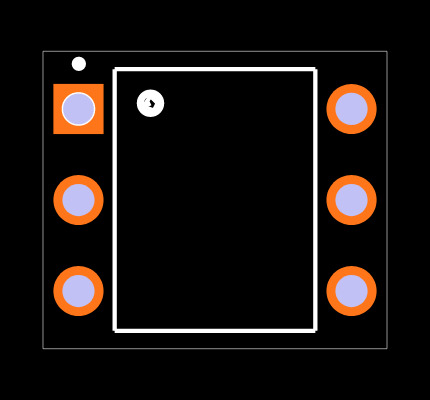

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SPM15-120-Q12P-C
| Part Name | SPM15-120-Q12P-C |
| Manufacturer | Murata Power |
| Category | DC-DC Converters |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=SPM15-120-Q12P-C |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 10.41 (mm) |
| Number Of Outputs | 1 |
| Output Voltage Adjustment Range (V) | -10 → +10 (%) |
| Maximum Temperature | +85 (°C) |
| Isolation Voltage (V) | 1.6 (kV dc) |
| Standards Met | CAN/CSA-C22.2 No. 60950-1, IEC60950-1, UL 60950-1 |
| Mounting Type | Through Hole |
| Package | Metal Case |
| Series | SPM25 |
| Input Voltage Range (V) | 9 → 36 V dc |
| Isolated | Yes |
| Width | 25.4 (mm) |
| Length | 25.91 (mm) |
| Load Regulation | ±0.1 (%) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 24 V dc |
| Power Rating | 15.6 (W) |
| Output Voltage (V) | 12 (V dc) |
| Output Current (A) | 1.3 (A) |
No issues have been reported for the SPM15-120-Q12P-C
If you experienced any issues with this part, please report it.
