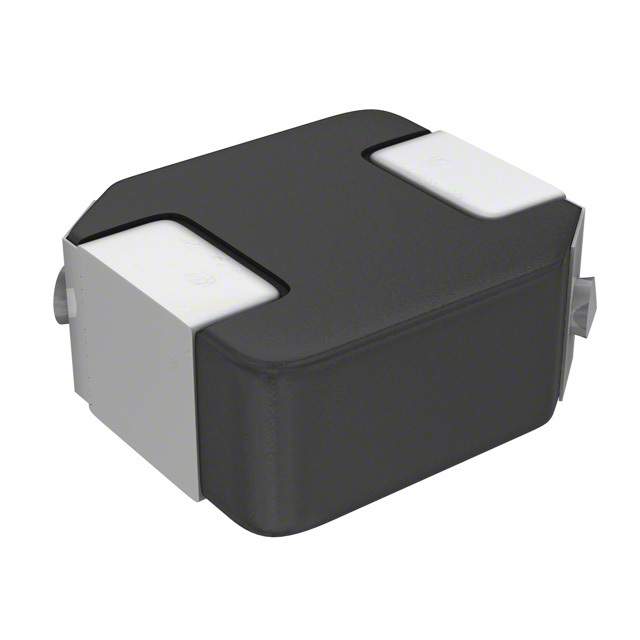

SPM6530T-3R3M
3.3 µH Shielded Drum Core, Wirewound Inductor 6.8 A 29.7mOhm Max Nonstandard
Availability: In Stock
Package Type: NON STANDARD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SPM6530T-3R3M by TDK and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

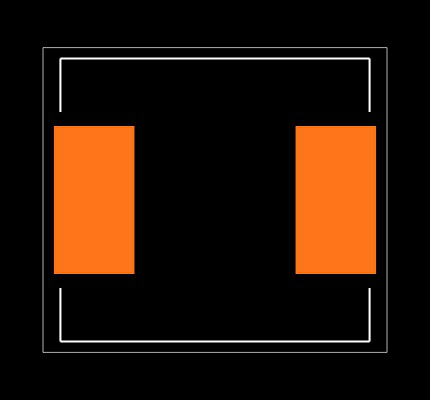

Footprint
No web preview
This Footprint is Available for

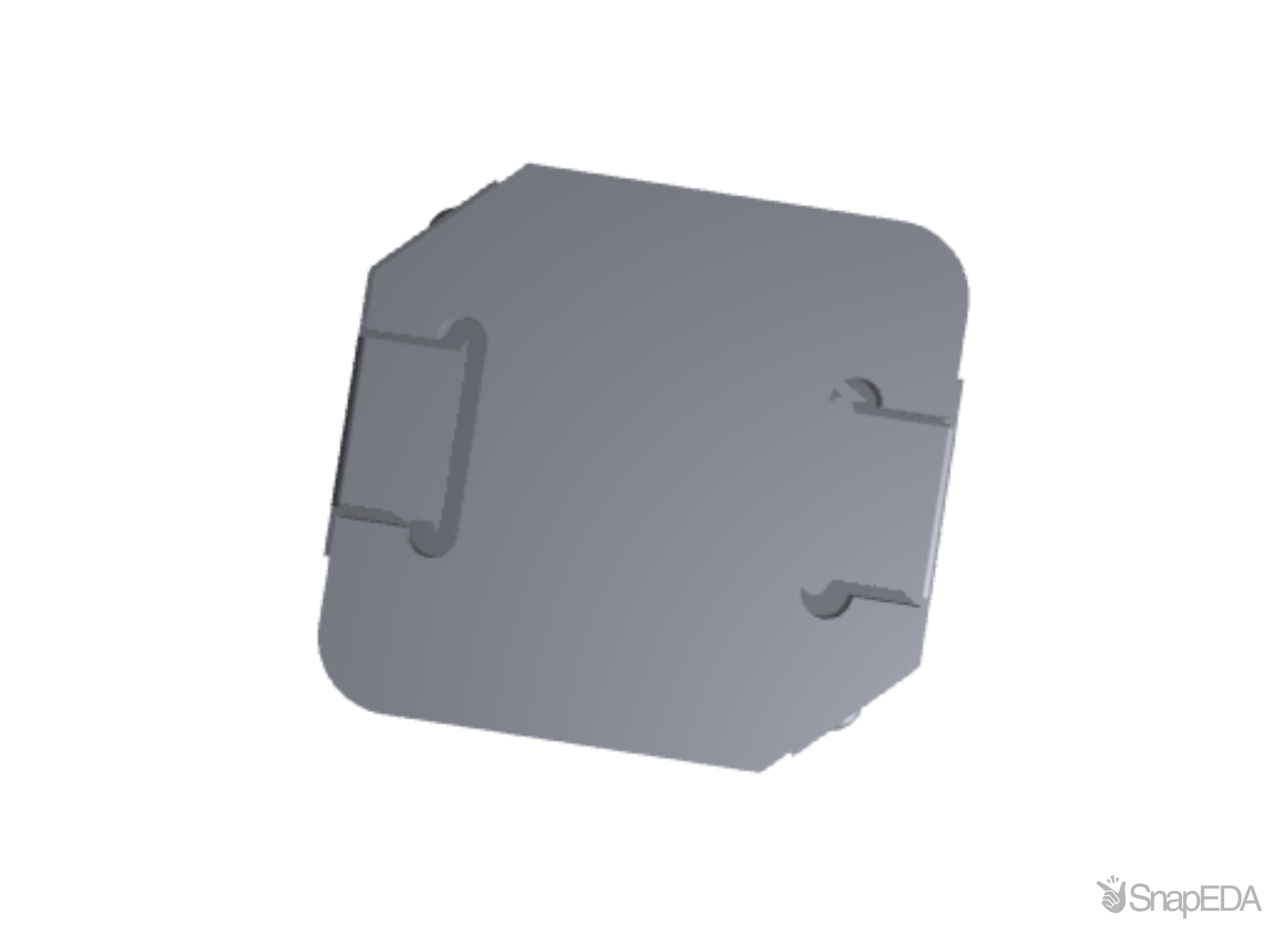

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SPM6530T-3R3M
| Part Name | SPM6530T-3R3M |
| Manufacturer | TDK |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Moulded | Yes |
| Maximum Dc Resistance | 29.7 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 7.1 x 6.5 x 3 (mm) |
| Shielded | Yes |
| Series | SPM |
| Depth | 6.5 (mm) |
| Height | 3 (mm) |
| Package Case | 6530 |
| Length | 7.1 (mm) |
| Core Material | Metallic Magnetic |
| Inductance | 3.3 μH |
| Maximum Dc Current (A) | 7.3 (A) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the SPM6530T-3R3M by TDK from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
9,458
|
|
Visit Site | |
|
★ Featured
|
9,275
|
|
Visit Site | |
|
★ Featured
|
10,000
|
2,920 x $0.12
|
Visit Site | |
| Arrow Europe |
78,000
|
|
Visit Site | |
| Verical |
78,000
|
|
Visit Site |
No issues have been reported for the SPM6530T-3R3M
If you experienced any issues with the symbol or footprint, please report it.
