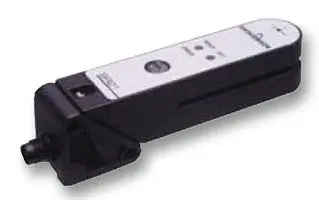

SR21-IR
PHOTOSWITCH, SLOT SENSOR; Sensor Output:NPN / PNP; Sensing Range Max:2mm; Supply Voltage DC Min:10V; Supply Voltage DC Max:30V; Output Current:100mA; Product Range:SR21 Series; SVHC:No SVHC (15-Jan-2018); External Depth:26mm; External Length / Height:90mm; External Width:20mm; Frequency Response Max:25kHz; IP / NEMA Rating:IP65; Operating Temperature Max:55°C; Operating Temperature Min:0°C; Output Current Max:100mA; Response Time:80µs; Sensing Distance Max:1.5mm; Sensing Distance Min:1mm; Sensor Input:Optical; Slot Width:2mm; Supply Voltage Range DC:10V to 30V; Thread Size:M8
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SR21-IR by Datasensor and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SR21-IR
| Part Name | SR21-IR |
| Manufacturer | Datasensor Sensors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Inventory for the SR21-IR by Datasensor from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
8
|
|
Visit Site | |
| Newark |
8
|
|
Visit Site | |
| element14 Singapore |
8
|
|
Visit Site |
No issues have been reported for the SR21-IR
