SR306
3A, 60V, Automotive Planar Schottky
Availability: In Stock
Package Type: DO-201AD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SR306 by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

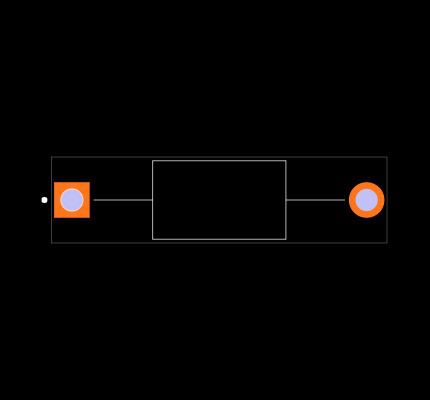

Footprint
No web preview
This Footprint is Available for

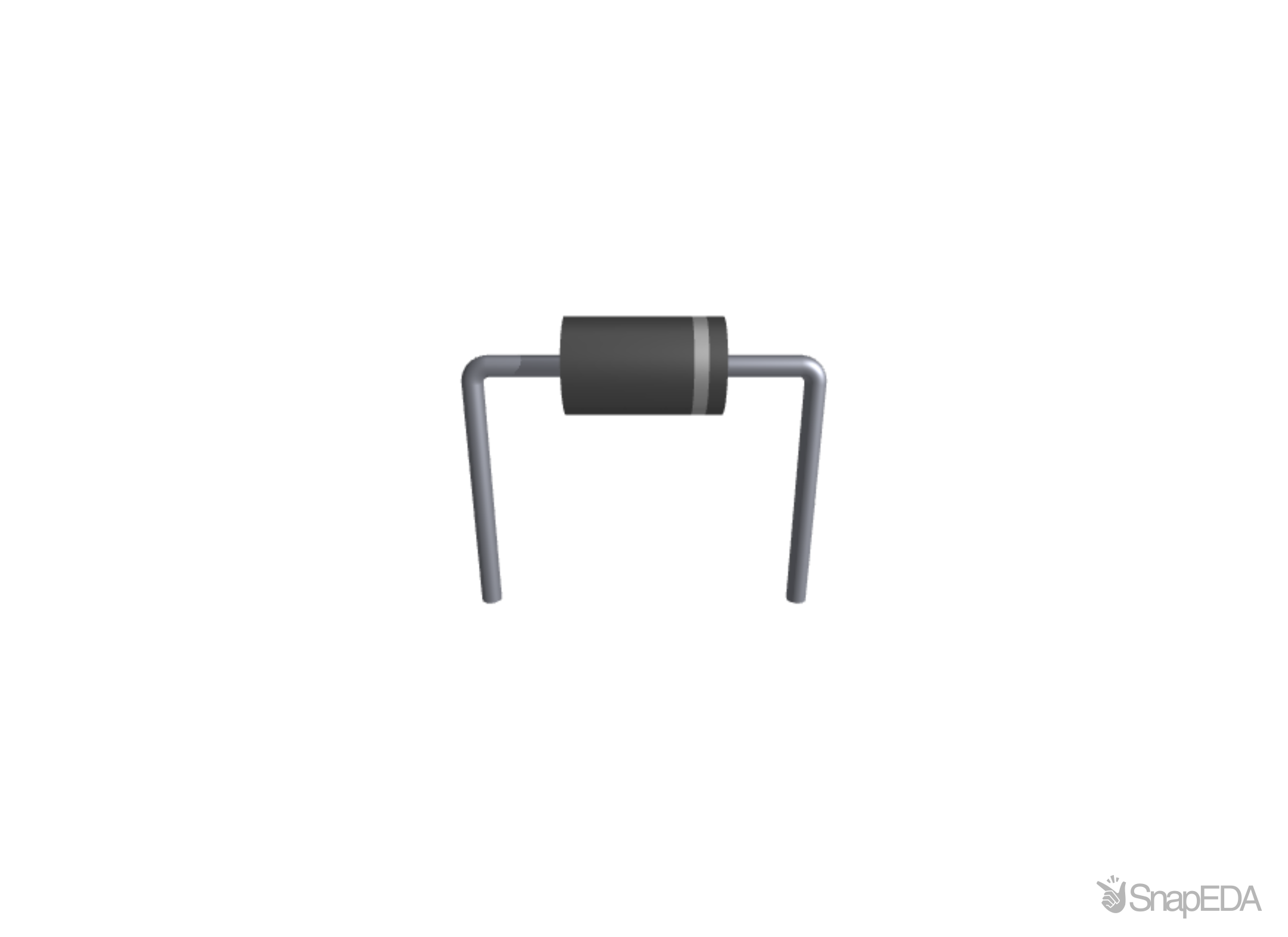

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SR306
| Part Name | SR306 |
| Manufacturer | Taiwan Semiconductor |
| Maximum DC Reverse Current (A) | 0.0005 |
| Family | SKY |
| Package | DO-201AD |
| Case Package | DO-201AD |
| Peak Forward Surge Current (A) | 80.0 |
| Maximum Operating Junction Temperature | 150.0 |
| Maximum Instantaneous Forward Voltage (V) | 0.7 |
| Maximum Repetitive Peak Reverse Voltage (V) | 60.0 |
| Technology | Standard |
| Maximum Average Forward Rectified Current (A) | 3.0 |
| RoHS | True |
| AEC-Q compliant | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 5.6 (mm) |
| Mounting Type | Through Hole |
| Maximum Continuous Forward Current (A) | 3 (A) |
| Diode Technology | Schottky |
| Maximum Forward Voltage Drop (V) | 700 (mV) |
| Rectifier Type | Schottky Rectifier |
| Package Type | DO-201AD |
| Peak Reverse Repetitive Voltage (V) | 60 (V) |
| Diode Type | Schottky |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Non Repetitive Forward Surge Current (A) | 80 (A) |
| Number Of Elements Per Chip | 1 |
Inventory for the SR306 by taiwan from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
2,500 x $0.12
|
Visit Site | |
|
★ Featured
|
763
|
|
Visit Site | |
|
★ Featured
|
1,130
|
5,885 x $0.06
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
650
|
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| Schukat Electronic |
650
|
|
Visit Site | |
| TME |
82
|
|
Visit Site | |
| element14 Singapore |
2,500
|
|
Visit Site |
No issues have been reported for the SR306
If you experienced any issues with the symbol or footprint, please report it.
