SRF0905-500Y

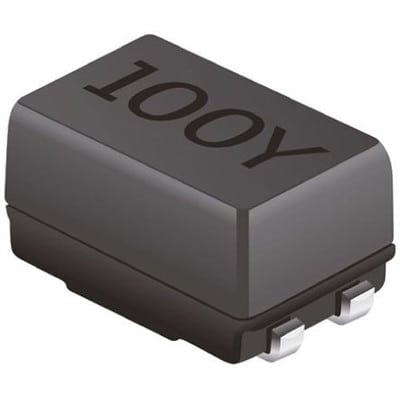

SRF0905 WireWound SMDinductor w/ FerriteCore,50 uH +/- 30%WireWound 800mA Idc | Bourns SRF0905-500Y
Availability: In Stock
Package Type: HORIZONTAL-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SRF0905-500Y by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

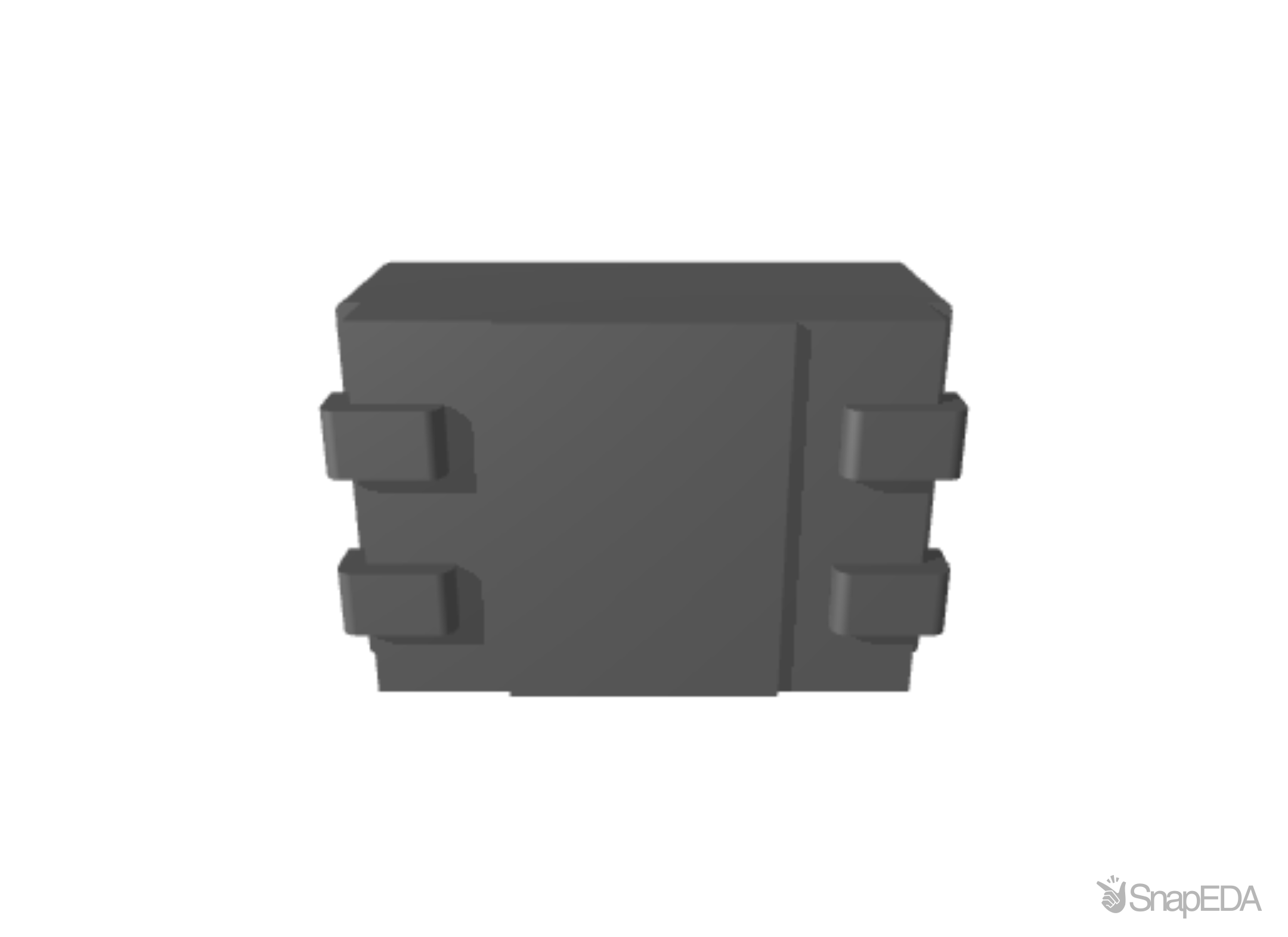

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SRF0905-500Y
| Part Name | SRF0905-500Y |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Moulded | Yes |
| Maximum Dc Resistance | 320 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 9.2 x 6 x 5 (mm) |
| Tolerance | ±30 (%) |
| Maximum Dc Current (A) | 800 (mA) |
| Series | SRF0905 |
| Depth | 6 (mm) |
| Height | 5 (mm) |
| Length | 9.2 (mm) |
| Core Material | Ferrite |
| Inductance | 50 μH |
| Maximum Self Resonant Frequency | 100 (MHz) |
| Maximum Operating Temperature | +105 (°C) |
| Minimum Operating Temperature | -40 (°C) |
| Package/Case | 0905 |
Inventory for the SRF0905-500Y by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
15,351
|
|
Visit Site | |
|
★ Featured
|
21,433
|
|
Visit Site | |
|
★ Featured
|
80,000
|
830 x $0.36
|
Visit Site | |
| Arrow Electronics |
4,000
|
|
Visit Site | |
| Verical |
4,000
|
|
Visit Site |
No issues have been reported for the SRF0905-500Y
