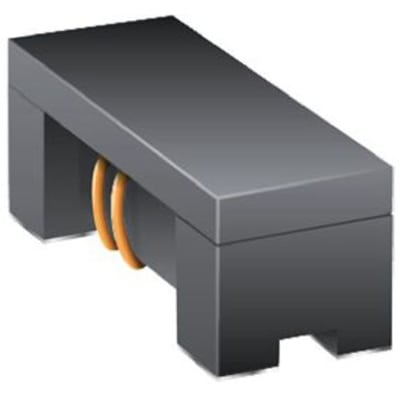

SRF2012-900YA
WireWound SMD Inductor w/ Ferrite Core,+/-25% WireWound 400mA Idc | Bourns SRF2012-900YA
Availability: Out of Stock
Package Type: HORIZONTAL-4
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SRF2012-900YA by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SRF2012-900YA
| Part Name | SRF2012-900YA |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 300 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 2 x 1.2 x 1.2 (mm) |
| Tolerance | ±25 (%) |
| Shielded | No |
| Series | SRF2012A |
| Package Case | 2012 |
| Length | 2 (mm) |
| Height | 1.2 (mm) |
| Maximum Dc Current (A) | 400 (mA) |
| Depth | 1.2 (mm) |
| Core Material | Ferrite |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Operating Temperature | +125 (°C) |
No issues have been reported for the SRF2012-900YA
