SRN3015-3R3M
Inductor,Power,Semi-Shielded,Ind 3.3 uH,Tol 20%,Cur-Rtg 1.6 A,SMT | Bourns SRN3015-3R3M
Availability: In Stock
Package Type: NONSTANDARD
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SRN3015-3R3M by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

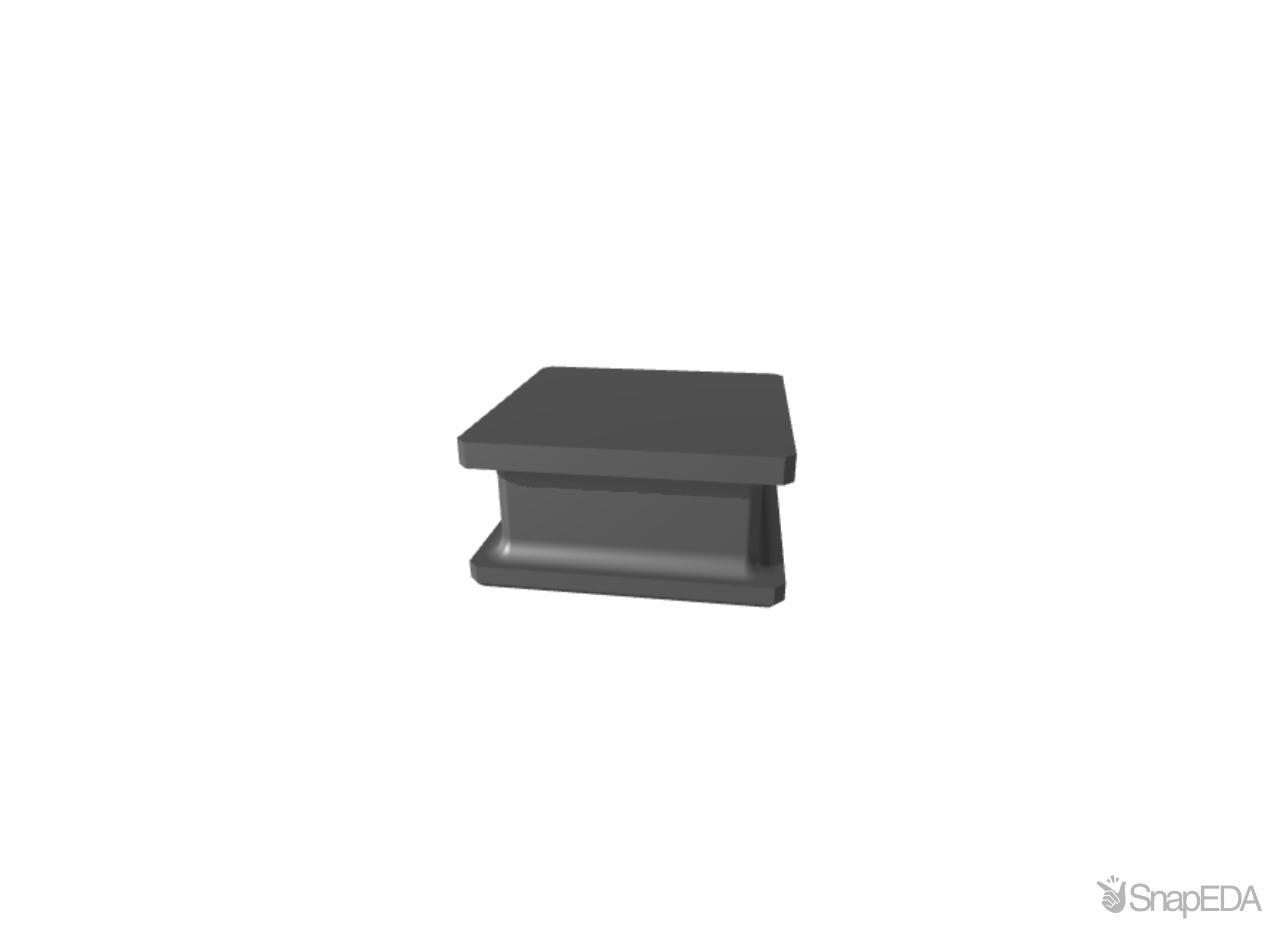

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SRN3015-3R3M
| Part Name | SRN3015-3R3M |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 112 (mΩ) |
| Inductor Construction | Semi-Shielded |
| Dimensions | 3 x 3 x 1.5 (mm) |
| Shielded | Yes |
| Series | SRN3015 |
| Minimum Quality Factor | 10 |
| Depth | 3 (mm) |
| Height | 1.5 (mm) |
| Package Case | 3015 |
| Length | 3 (mm) |
| Core Material | Ferrite |
| Inductance | 3.3 μH |
| Maximum Self Resonant Frequency | 75 (MHz) |
| Maximum Dc Current (A) | 1.6 (A) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
