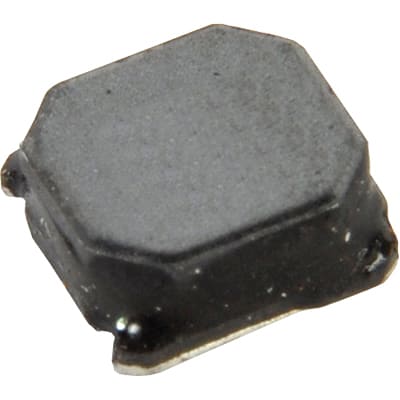

SRN4018-470M
Inductor,Semi-Shielded,Ind 47 uH,Tol 20%,Cur-Rtg 0.6 A,SMT,1616 | Bourns SRN4018-470M
Availability: In Stock
Package Type: -
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SRN4018-470M by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

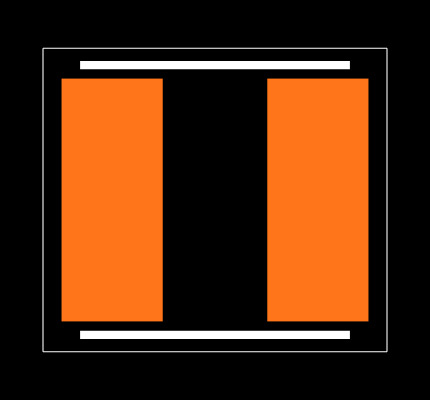

Footprint
No web preview
This Footprint is Available for

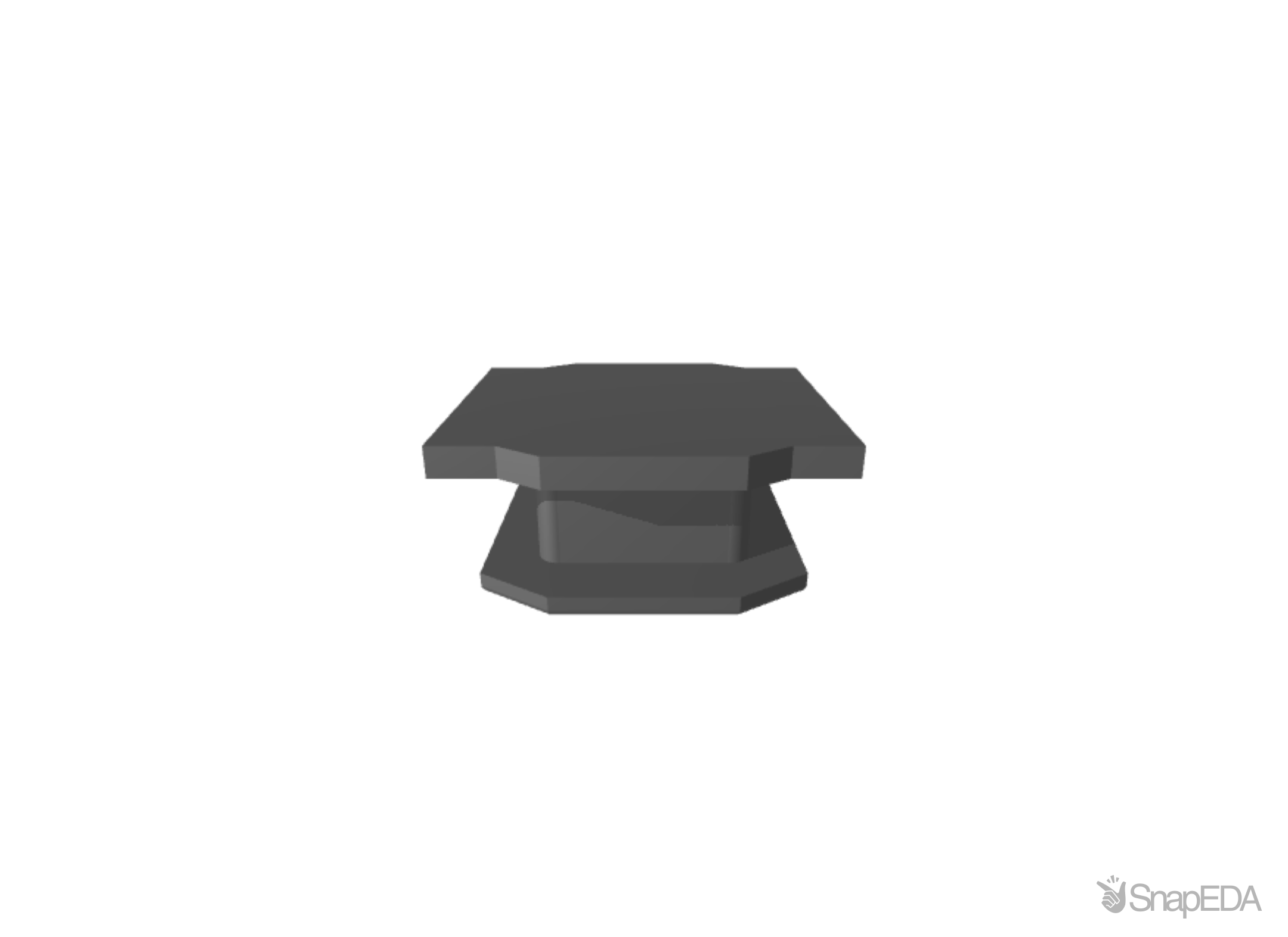

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SRN4018-470M
| Part Name | SRN4018-470M |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Inductance | 47 μH |
| Shielded | Yes |
| Series | SRN4018 |
| Length | 4 (mm) |
| Maximum Dc Current (A) | 600 (mA) |
| Depth | 1.8 (mm) |
| Core Material | Ferrite |
| Minimum Quality Factor | 11 |
| Tolerance | 20% |
| Automotive Standard | AEC Q200 |
