SRN8040TA-470M

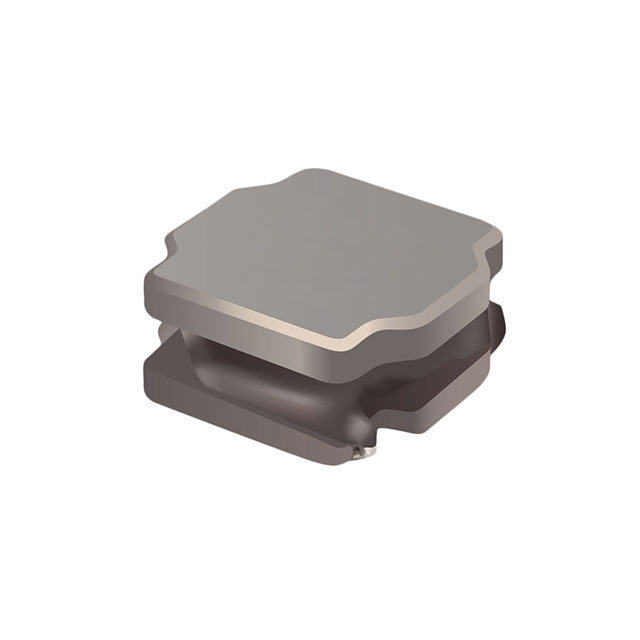

Inductors, Fixed, 47uH 20% 1.7A non-shdSMD AEC-Q200 | Bourns SRN8040TA-470M
Availability: In Stock
Package Type: NON-STANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SRN8040TA-470M by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

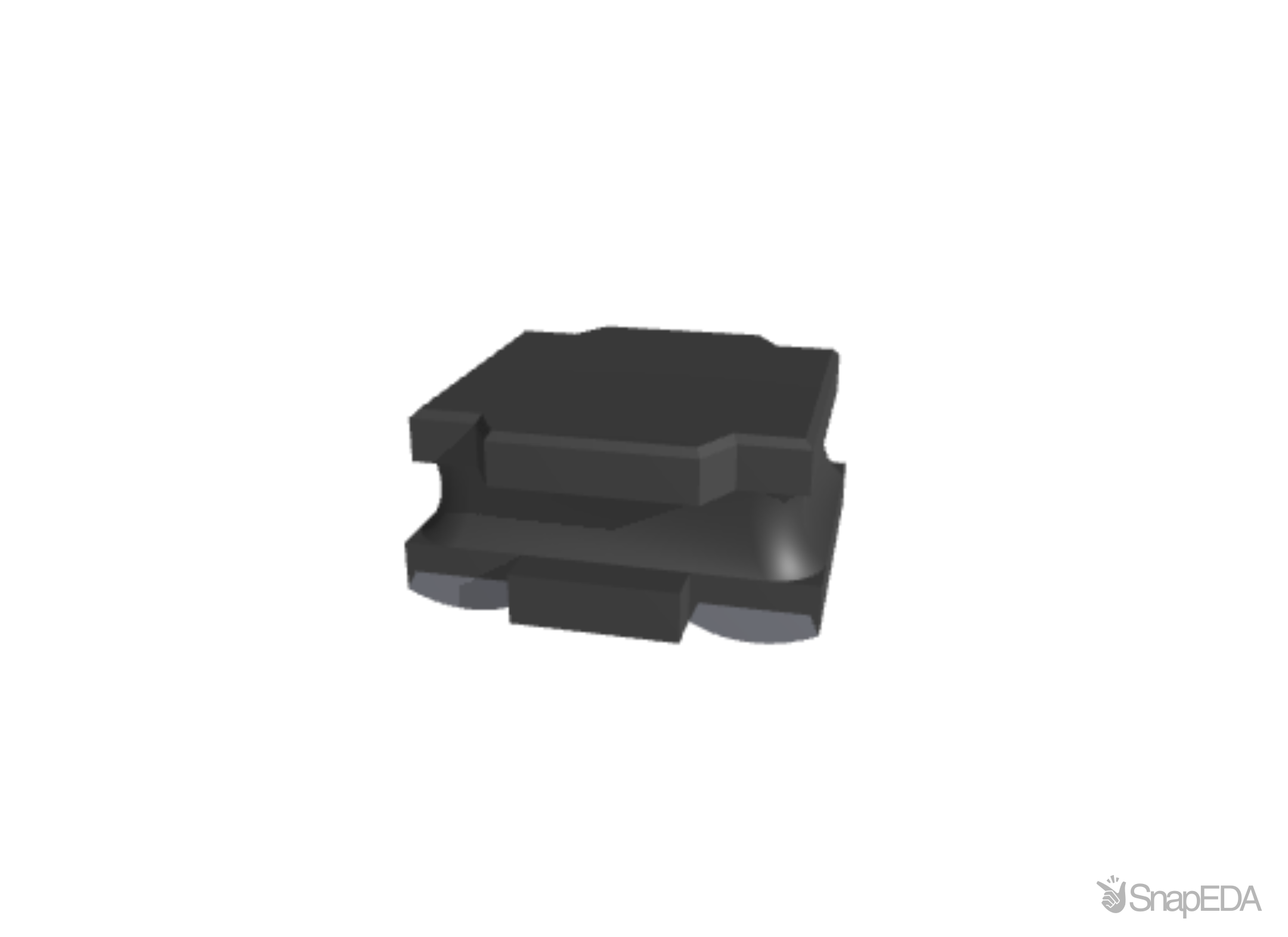

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SRN8040TA-470M
| Part Name | SRN8040TA-470M |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 135 (mΩ) |
| Inductor Construction | Semi-Shielded |
| Dimensions | 8 x 8 x 3.7 (mm) |
| Inductance | 47 μH |
| Maximum Dc Current (A) | 2 (A) |
| Series | SRN8040TA |
| Minimum Quality Factor | 12 |
| Depth | 8 (mm) |
| Height | 3.7 (mm) |
| Length | 8 (mm) |
| Core Material | Ferrite |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Self Resonant Frequency | 12 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±20 (%) |
| Automotive Standard | AEC-Q200 |
