SRP5030T-3R3M
Shielded WireWound SMD Inductor w/ Iron Core,3.3 uH +/-20% 5A Idc | Bourns SRP5030T-3R3M
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SRP5030T-3R3M by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

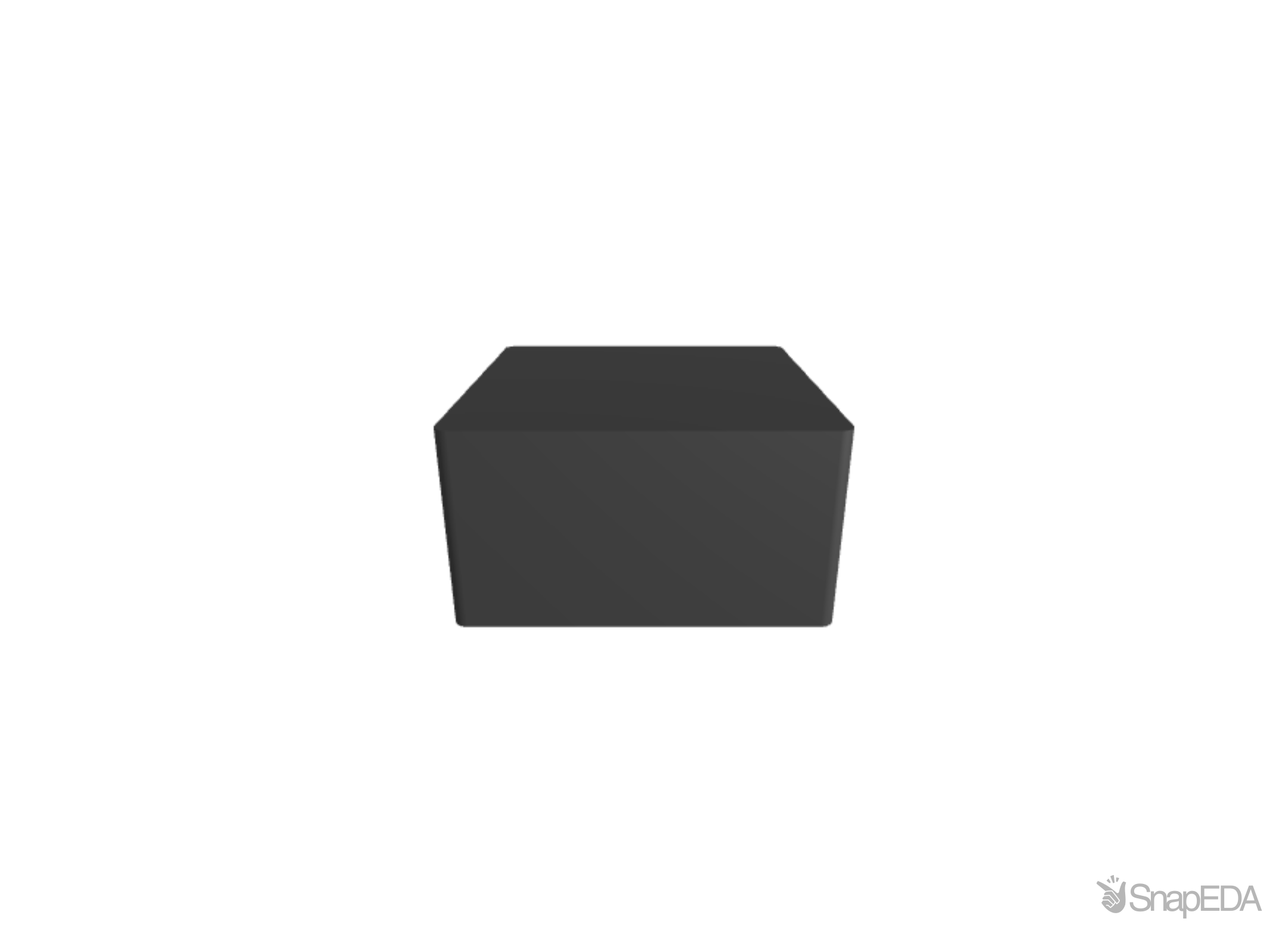

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SRP5030T-3R3M
| Part Name | SRP5030T-3R3M |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | SMD |
| Series | SRP5030T |
| Maximum Dc Current (A) | 5 (A) |
| Core Material | Carbonyl Powder |
| Inductance | 3.3 μH |
| Maximum Self Resonant Frequency | 100 (MHz) |
| Tolerance | 20 (%) |
Inventory for the SRP5030T-3R3M by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
64
|
|
Visit Site | |
|
★ Featured
|
2,579
|
|
Visit Site | |
| Arrow Electronics |
96
|
96 x $0.52
|
Visit Site | |
| Onlinecomponents |
555
|
|
Visit Site | |
| RS Americas |
2,000
|
|
Visit Site | |
| Verical |
349
|
349 x $0.85
|
Visit Site |
No issues have been reported for the SRP5030T-3R3M
