SRP6540-R68M
Inductor, Power, Shielded, 0.68uH, 16.5A, 20% | Bourns SRP6540-R68M
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SRP6540-R68M by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

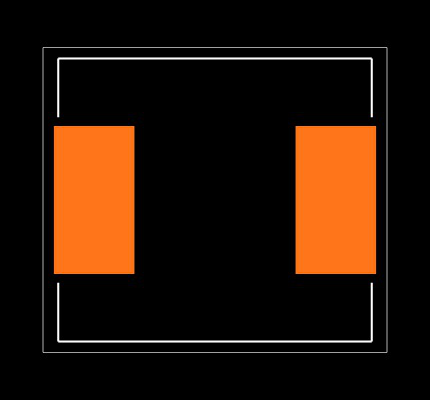

Footprint
No web preview
This Footprint is Available for

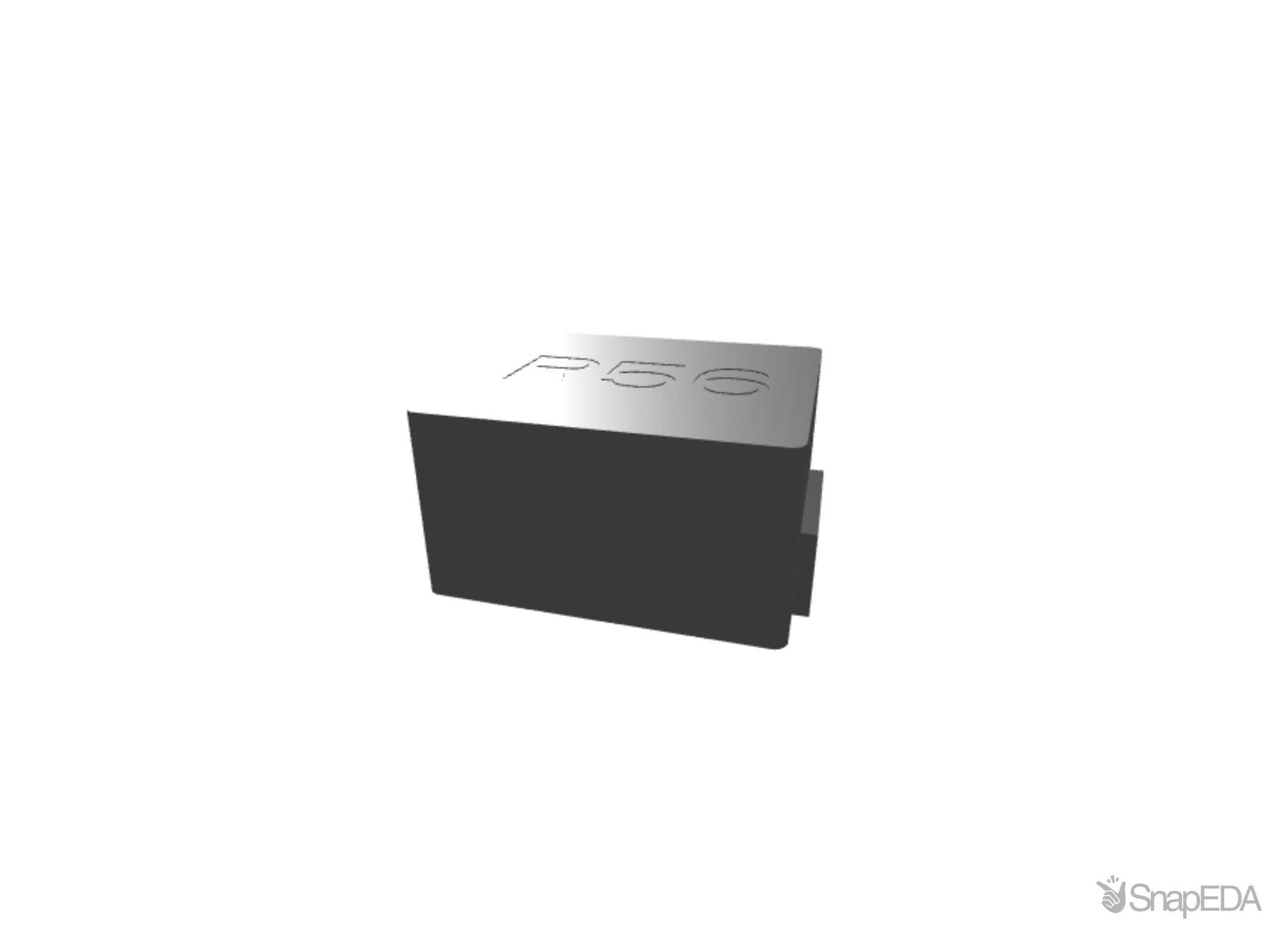

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SRP6540-R68M
| Part Name | SRP6540-R68M |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Moulded | Yes |
| Maximum Dc Resistance | 5 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 6.5 x 7.2 x 4 (mm) |
| Shielded | Yes |
| Series | SRP6540 |
| Depth | 7.2 (mm) |
| Height | 4 (mm) |
| Package Case | 6540 |
| Length | 6.5 (mm) |
| Core Material | Powdered Iron |
| Inductance | 680 nH |
| Maximum Dc Current (A) | 16.5 (A) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -55 (°C) |
