SRR1260-471K
Inductor, Power, Shielded, Wirewound, 470uH, 10%, 0.95A | Bourns SRR1260-471K
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SRR1260-471K by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

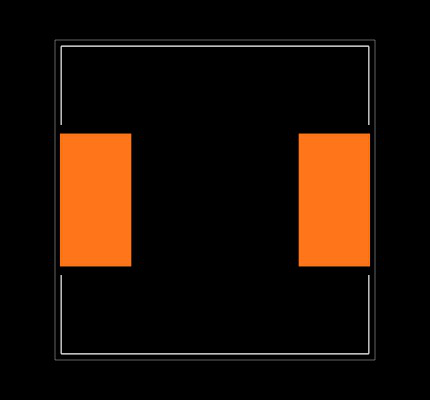

Footprint
No web preview
This Footprint is Available for

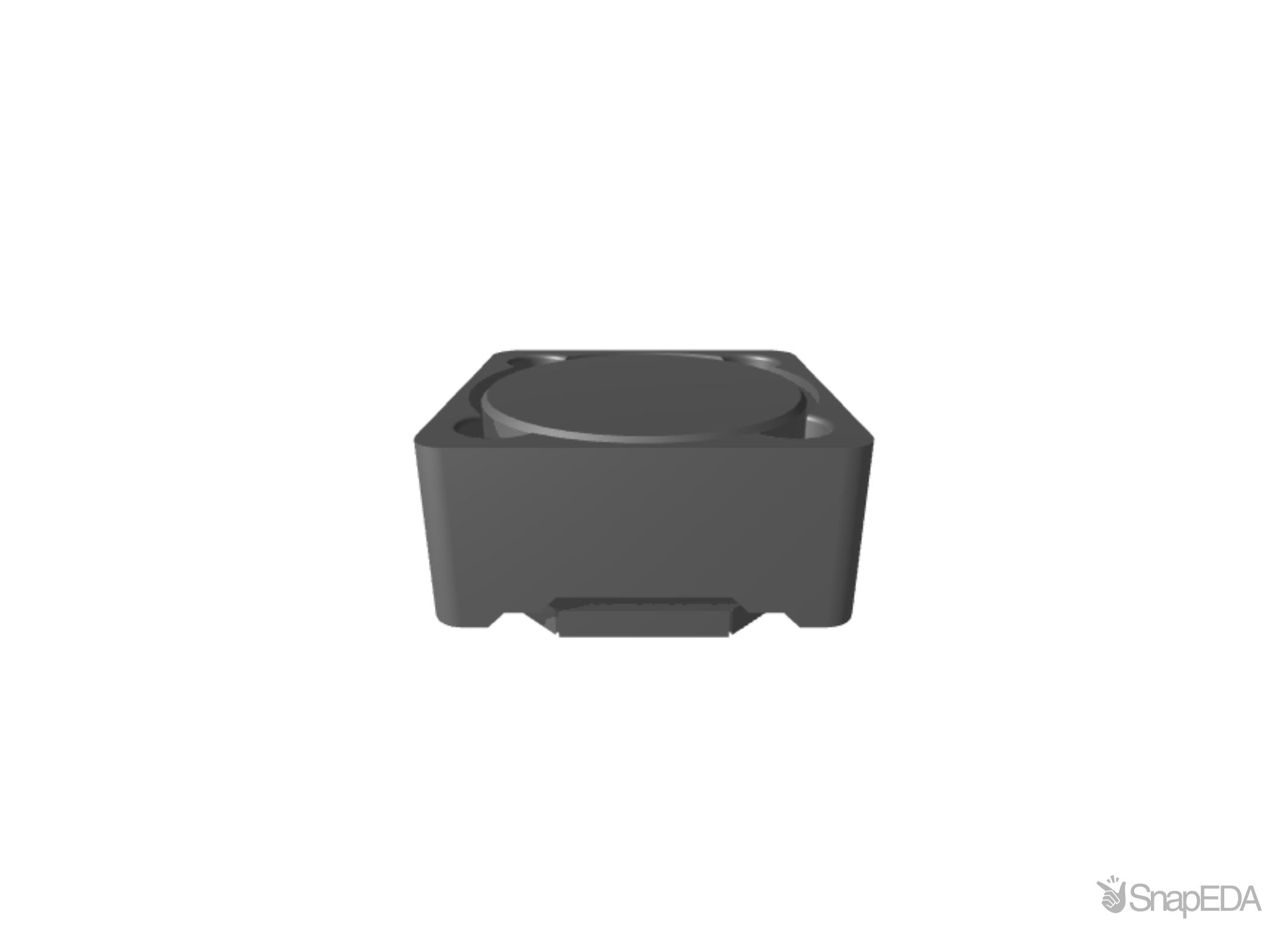

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SRR1260-471K
| Part Name | SRR1260-471K |
| Manufacturer | Bourns |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 820 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 12.5 x 12.5 x 6 (mm) |
| Tolerance | ±10 (%) |
| Inductance | 470 μH |
| Shielded | Yes |
| Series | SRR1260 |
| Length | 12.5 (mm) |
| Height | 6 (mm) |
| Maximum Dc Current (A) | 950 (mA) |
| Depth | 12.5 (mm) |
| Core Material | Ferrite DR & RI |
| Minimum Quality Factor | 18 |
| Maximum Self Resonant Frequency | 2.6 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
| Minimum Operating Temperature | -40 (°C) |
| Package/Case | 1260 |
