SRU1048-150Y
Inductor, Power, Shielded, Wirewound, 15uH, 30%, 3.2A | Bourns SRU1048-150Y
Availability: In Stock
Package Type: NON STANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SRU1048-150Y by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

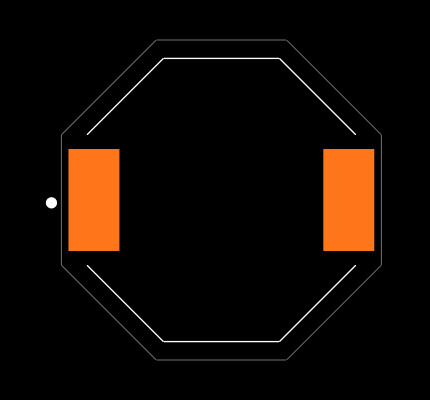

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SRU1048-150Y
| Part Name | SRU1048-150Y |
| Manufacturer | Bourns |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 29 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 10 x 10 x 4.8 (mm) |
| Tolerance | ±30 (%) |
| Shielded | Yes |
| Series | SRU1048 |
| Minimum Operating Temperature | -40 (°C) |
| Minimum Quality Factor | 30 |
| Length | 10 (mm) |
| Height | 4.8 (mm) |
| Maximum Dc Current (A) | 3.2 (A) |
| Depth | 10 (mm) |
| Core Material | Ferrite |
| Inductance | 15 μH |
| Maximum Self Resonant Frequency | 14 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
| Moulded | Yes |
| Package/Case | 1048 |
