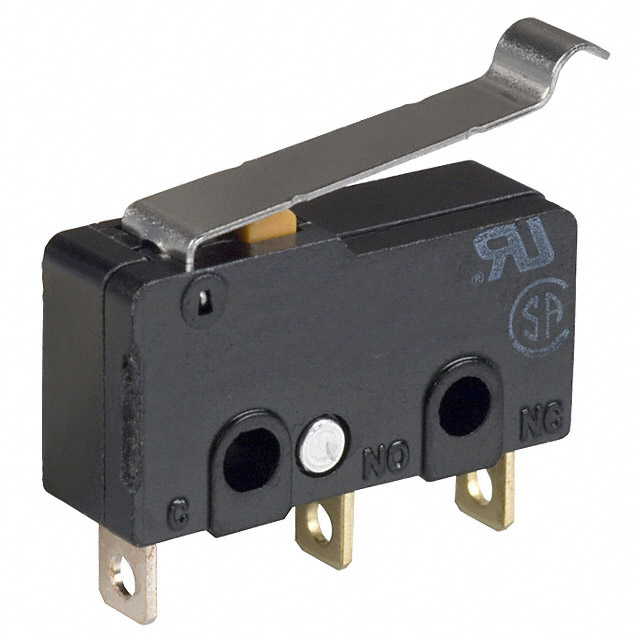

SS-5GL13
Switch SPDT Through Hole, Right Angle
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SS-5GL13 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

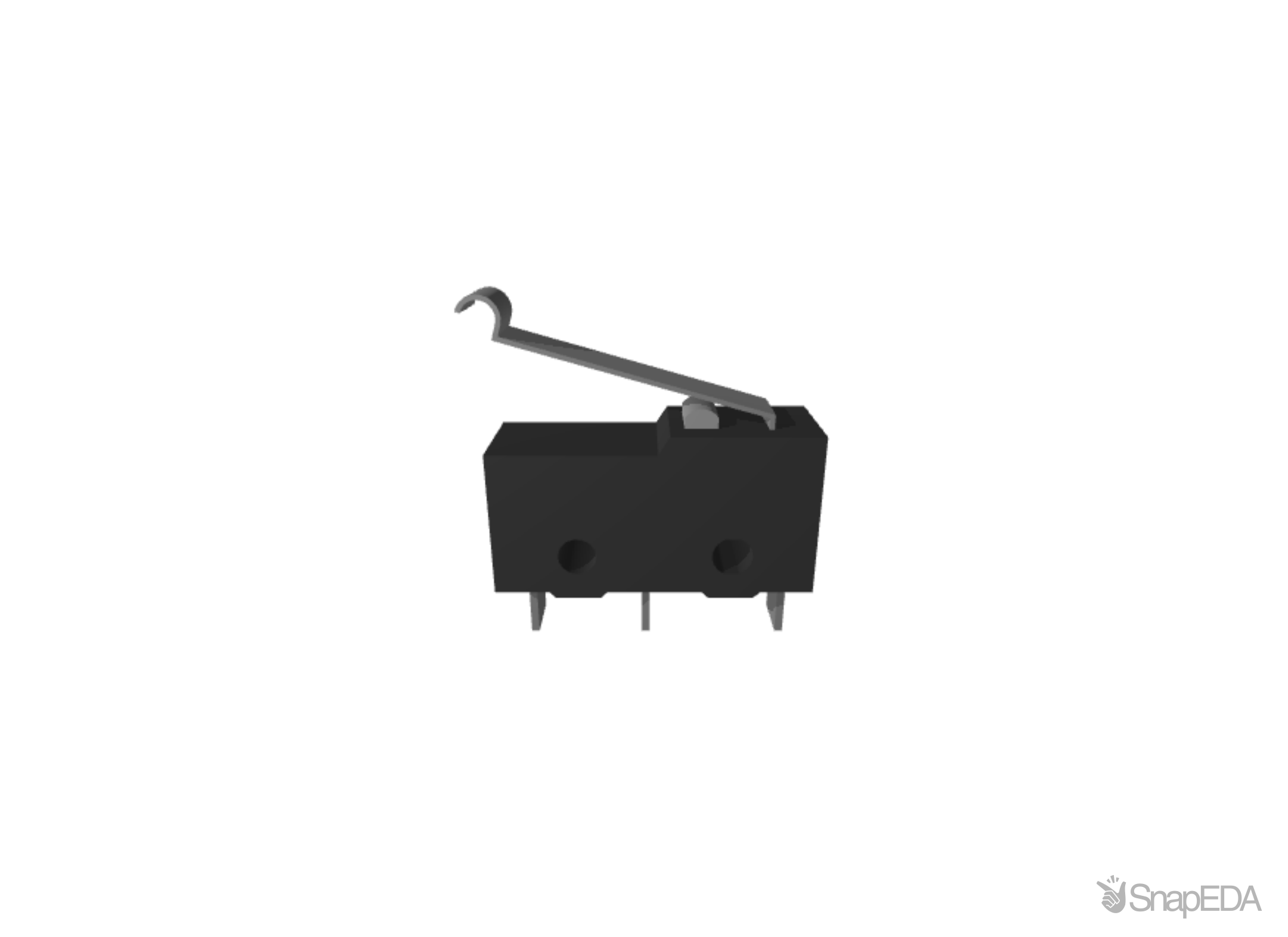

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SS-5GL13
| Part Name | SS-5GL13 |
| Manufacturer | Omron |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Operating Force | 0.49 N |
| Actuator Type | Simulated Roller Lever |
| Operating Temperature Range | -25 → +85 (°C) |
| Contact Current Rating (A) | 5 A @ 125 V ac |
| Ip Rating | IP40 |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25 (°C) |
| Mechanical Life | 30000000 (Operations) |
| Release Force | 0.06 (N) |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | Solder |
| Contact Material | Silver |
Inventory for the SS-5GL13 by Omron from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
18,248
|
|
Visit Site | |
|
★ Featured
|
5,118
|
|
Visit Site | |
|
★ Featured
|
3,570
|
1,010 x $0.34
|
Visit Site | |
| Arrow Electronics |
427
|
|
Visit Site | |
| Onlinecomponents |
4,128
|
|
Visit Site | |
| RS Americas |
480
|
|
Visit Site | |
| Verical |
95
|
|
Visit Site |
No issues have been reported for the SS-5GL13
If you experienced any issues with this part, please report it.
